Maxon RD-21A

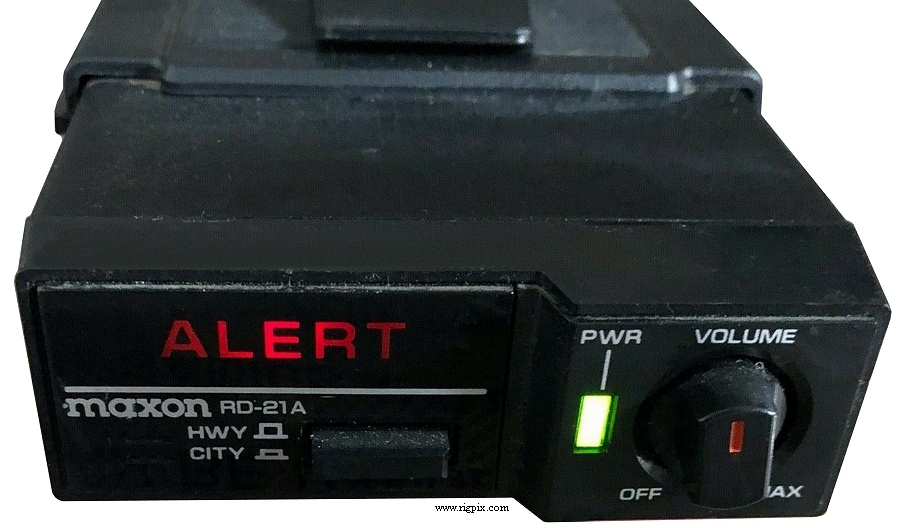

A picture of Maxon RD-21A

SPECIFICATIONS

GENERAL
Type:Radar detector
Band(s):
X-band:  10.525 GHz (±100 MHz)
K-band:  24.150 GHz (±100 MHz)
Detector type(s):
Antenna type:Ridge guide feed wideband horn
RDD protection:No
Laser detection:No
Power supply:11-16 VDC (Barrel connector, center positive)
Current drain / power consumption:Max 430 mA
Dimensions (W*H*D):73*25*114 mm (2.88*1*4.5")
Weight:198 g (7 oz)
Other features:City/Highway mode.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ?
2nd IF: ?
Sensitivity: X-band: -110 dBm/cm2
K-band: -102 dBm/cm2
Selectivity:Greater than 80 dB (50 MHz removed from band edge)




MISCELLANEOUS
Manufactured:Korea, 1988-19xx (Discontinued)
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
