Passport (The original by Cincinnati Microwave Inc.)

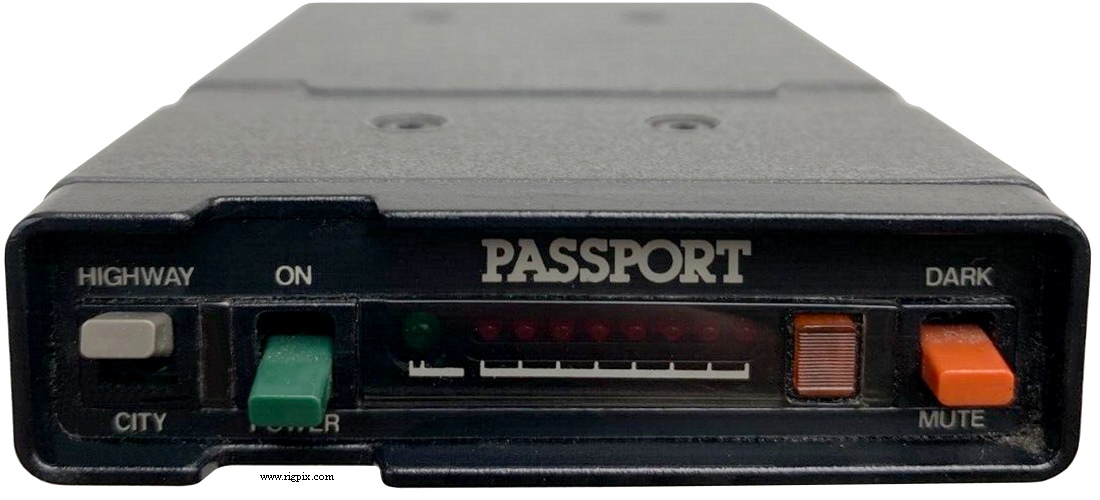

A picture of Passport (The original by Cincinnati Microwave Inc.)

SPECIFICATIONS

GENERAL
Type:Radar detector
Band(s):
X-band:  10.525 GHz
K-band:  24.150 GHz
Detector type(s):
Antenna type:Horn
RDD protection:No
Laser detection:No
Power supply:9 VDC (Barrel connector)
Current drain / power consumption:? mA
Dimensions (W*H*D):70*19*114 mm (2.75*0.75*4.5")
Weight:? g (? oz)
Other features: City/Highway mode. Signal meter. Autodimmer.
Separate tones for X and K band.




RECEIVER SECTION
Receiver system:
Sensitivity:
Selectivity:




MISCELLANEOUS
Manufactured:1984-19xx (Discontinued)
Additional info: New price 1984 in the US: $295.00
New price 1988 in the US: $295.00
Related documents:
Reviews:
Options / Accessories:
- -

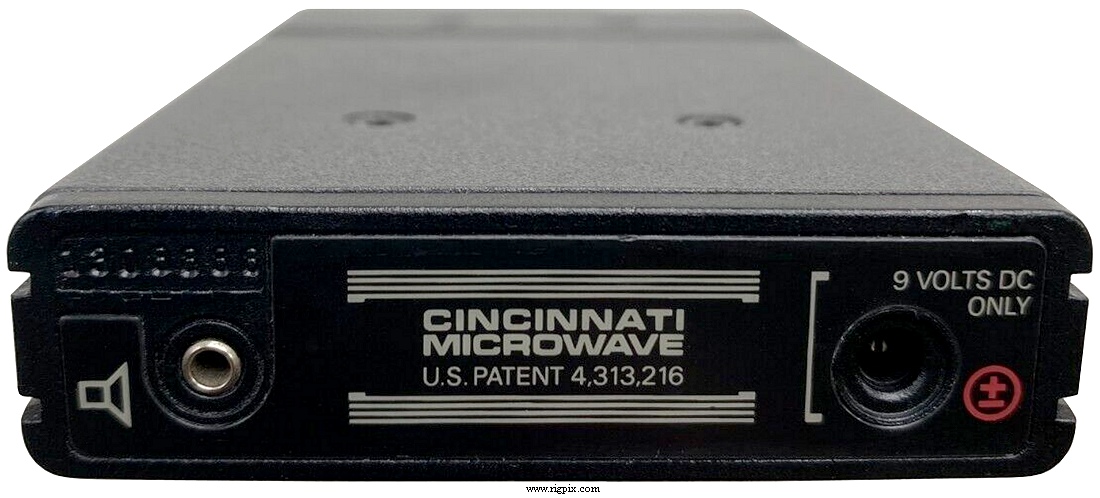

A rear picture of Passport (The original by Cincinnati Microwave Inc.)
