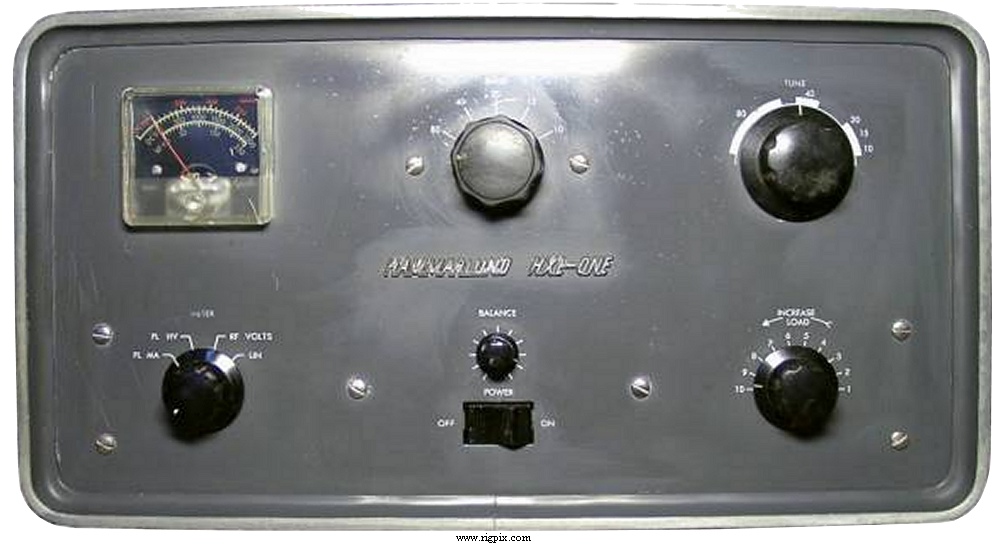

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): | 10-80 m |
| Output power: |
AM: 500 W (DC input)
SSB: 1.5 KW (PEP input)
CW: 1 KW (DC input)
|
| Drive power: | Max 75 W |
| Power supply: | Mains: 110-120 / 220-230 VAC |
| Current drain / power consumption: | Max 1500 W |
| Impedance / connectors: | 50-75 ohm / Two SO-239 |
| Dimensions (W*H*D): | 432*236*241 mm (17*9.3*9.5") |
| Weight: | 30 Kg (66 lb) |
| Manufactured: | USA, 196x-196x (Discontinued) |
| Other: |
Two 572A power triodes (Early version)
|
| Related documents: |
User manual (4.3 MB)
Two 572B power triodes (Later version)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
