National Panasonic DR-48

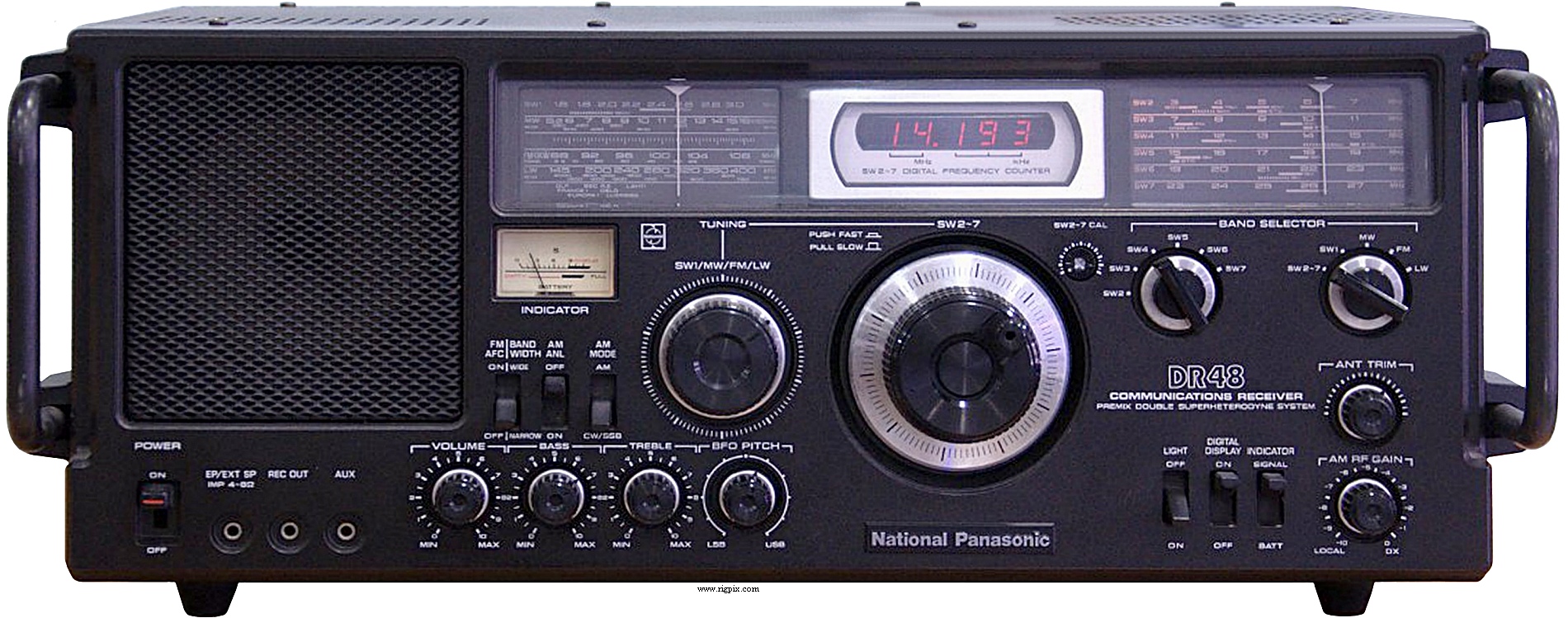

A picture of National Panasonic DR-48

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.525-31 MHz / 88-108 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / SSB / WFM
Channels / memory management: None
Power supply:Mains or 12 VDC
Current drain / power consumption:? mA @ 12 VDC
Antenna impedance / connector:? ohm / ?
Dimensions (W*H*D):482*200*354 mm (18.98*7.87*13.94")
Weight:8 Kg (17.64 lb), without batteries
Other features:Digital LED display.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:1978-19xx (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
