| GENERAL |

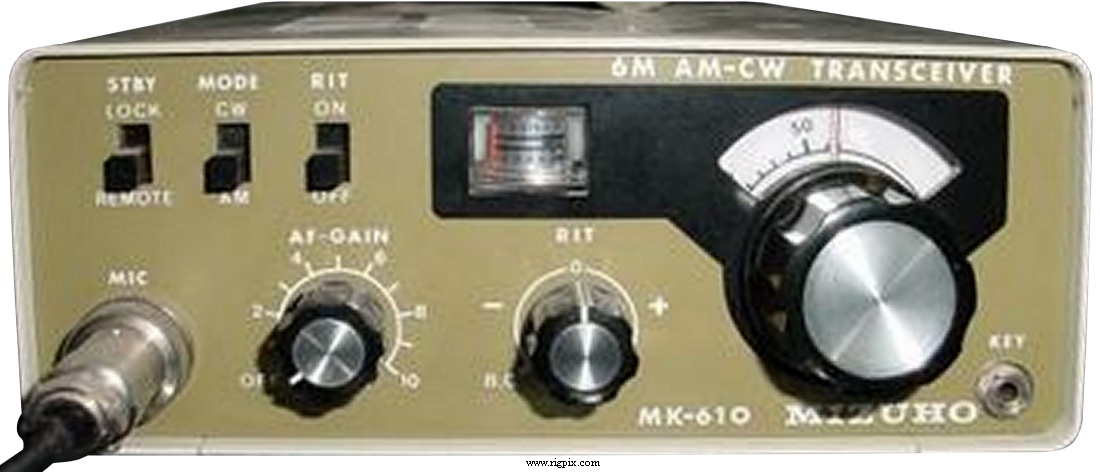

| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 50-54 MHz
RX: 50-54 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ±? ppm |
| Mode: | AM / CW |
| Channels / memory management: |
|
| Repeater shift / offset: | No |
| Power supply: | 12 VDC (Eight LR14 / C batteries) |
| Current drain / power consumption: | RX: 50 mA
TX: Max 400 mA |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 165*63*185 mm (6.5*2.48*7.28") |
| Weight: | 1.5 Kg (3.31 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
