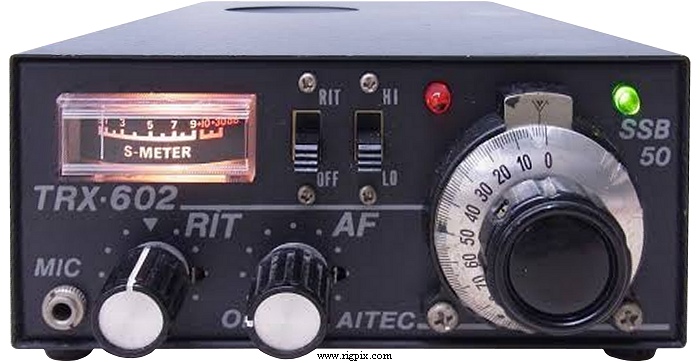

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 50.150-50.240 MHz
RX: 50.150-50.240 MHz
|
| Tuning steps: | Analog / continuous (±45 KHz VXO) |
| Frequency stability: | ±? ppm |
| Mode: | SSB |
| Channels / memory management: |
No
|
| Repeater shift / offset: | No |
| Power supply: | 12-14 VDC (Male barrel jack) |
| Current drain / power consumption: | RX: 130 mA (No signal)
TX: Max 230 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 122*53*200 mm (4.8*2.09*7.87") |
| Weight: | 860 g (1.89 lb) |
| Other features: | RIT. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 11.272 MHz
|
| Sensitivity: | 0.1 uV (MDS) |
| Squelch sensitivity: | - |
| Noise figure: | |
| Selectivity: | 2.2 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 400 mW (PEP)
|
| Modulation system: | Balanced |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / TRS "Minijack" (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|

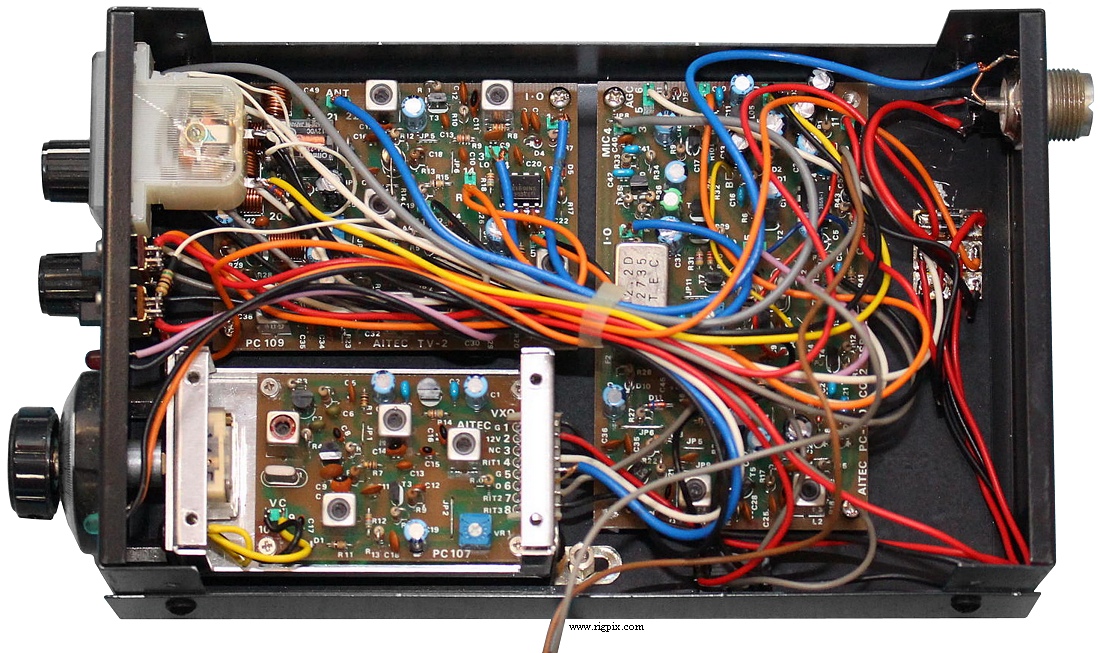

| MISCELLANEOUS |
| Manufactured: | Japan, 199x-2002 (Discontinued) |
| Additional info: |
This was a kit sold in Japan.
|
| Related documents: |
AF amplifier: LM386
RF final: 2SC2086
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
