| GENERAL |

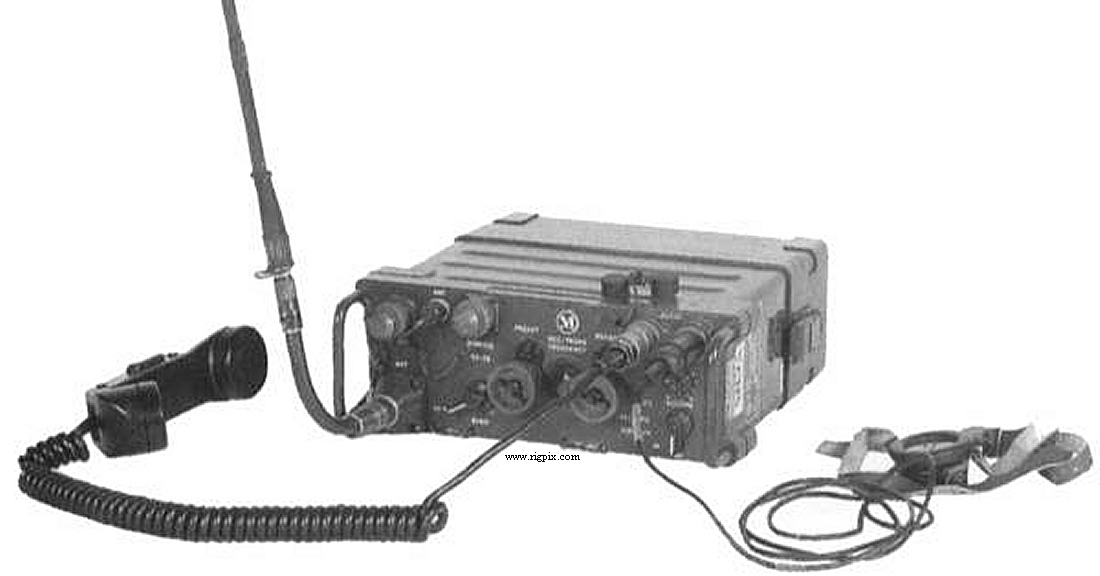

| Type: | Military VHF transceiver |
| Frequency range: |
30-75.95 MHz in two bands
A: 30-52.95 MHz
B: 53-75.95 MHz
|
| Tuning steps: | Channelized (25 or 50 KHz steps) |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: |
2 presets out of 920 channels
|
| Duplex shift / offset: | No |
| Power supply: | 12 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 280*104*295 mm (?") |
| Weight: | 10 Kg (? lb) |
| Other features: |
CTCSS/PL 150.0 Hz. Encryption option (X-Mode).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 1.5 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1976-197x (Discontinued) |
| Additional info: |
Fully transistorized. Originally an american PRC-77.
It was modified and improved by the Israeli company
Tadiran for the Swedish military.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
