| GENERAL |

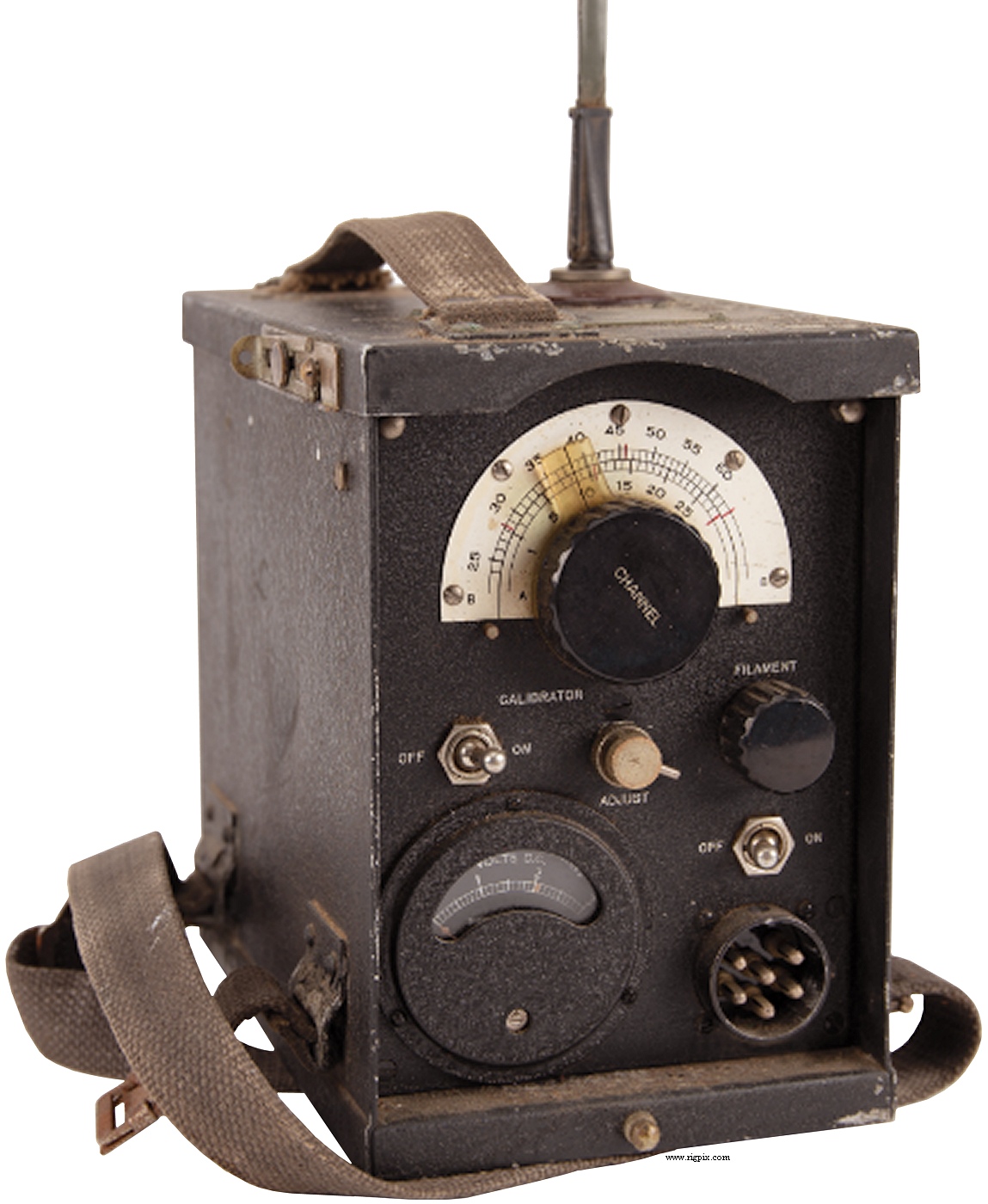

| Type: | Military HF/VHF transceiver |
| Frequency range: |
28-52 MHz in two bands
A: 28-38 MHz
B: 38-52 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | Max ? ppm |
| Mode: | AM |
| Channels / memory management: | None |
| Duplex shift / offset: | No |
| Power supply: | ? VDC |
| Current drain / power consumption: | RX: ? A
TX: ? A |
| Antenna impedance / connector: | ? ohm / Threads |
| Dimensions (W*H*D): | ? mm (5.25*7.75*8.75") |
| Weight: | ? Kg (? lb) |
| Other features: | Plug-in coils. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 10 uV (No S/N reference) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 750 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Handset) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1938-194x (Discontinued) |
| Additional info: |
WWII backpack unit, part of the SCR-194 field artillery set.
Surplus price 1948 in the US: $39.50
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
