Zetagi MB+4

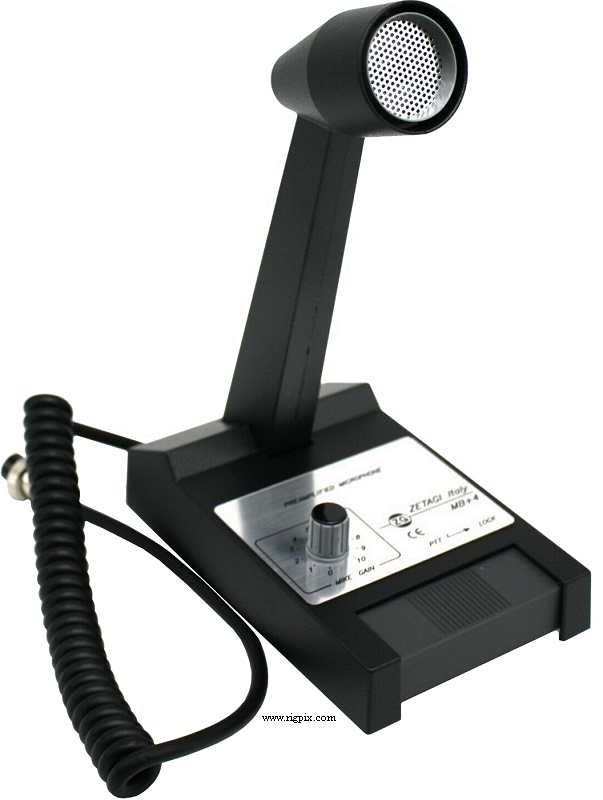

A picture of Zetagi MB+4

SPECIFICATIONS

Type:Amplified desk microphone
Frequency response:250-3500 Hz (-6 dB)
Sensitivity:? dB (? Hz, ? cm)
Output level:? mV
Output impedance / connector:0 to 5 Kohm / ?-pin (Female locking ring plug)
Power supply:9 VDC (6LR61 / PP3 / E battery)
Current drain:? mA
Dimensions (W*H*D):95*160*230 mm (3.74*6.3*9.06")
Weight:1.05 Kg (2.32 lb)
Manufactured:Italy, xxxx-202x
Other: Gain control.

New price, december 2023 in Sweden: SEK 795:-
Related documents:
Modifications and fixes:
Reviews:
Applicable radios:
