| GENERAL |

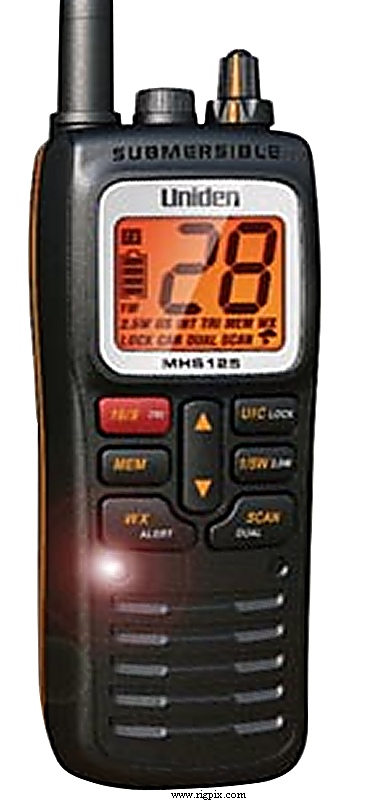

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.050-163.275 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±1.5 ppm @ 25°C (77°F) |
| Mode: | FM |
| Channels / memory management: |
All international, US and Canadian channels
10 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 6-7.4 VDC (Four LR03 / AAA alkaline batteries or Li-Ion battery pack) |
| Current drain / power consumption: | RX: 38-160 mA
TX: Max 1.5 A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 65*151*45 mm (2.56*5.95*1.77") |
| Weight: | 320 g (11.29 oz), with battery and antenna |
| Other features: |
Channel 16/9 button. Dual/triple/quad watch. Scanning.
Weather alert. SOS strobe light. JIS8/IPX8 water resistant.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.12 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 340 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 5 W
Mid: 2.5 W
Low: 1 W
NB! Max 2.5 W with alkaline batteries
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dBc |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 20xx-20xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (2.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HHSPM
VOX100
|
Speaker-microphone
Headset
|
|
