| GENERAL |

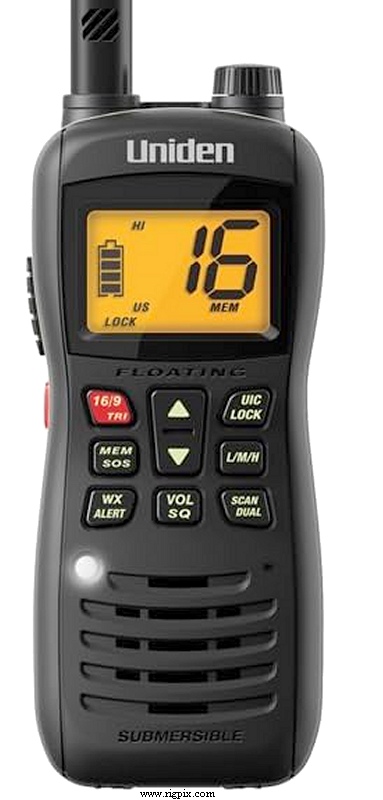

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.050-162.550 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±0.5 ppm @ 25°C (77°F) |
| Mode: | FM |
| Channels / memory management: |
All international, US and Canadian channels
9 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: 38-230 mA
TX: Max 1.4 A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 62*151*52 mm (2.45*5.96*2.03") |
| Weight: | 281 g (9.9 oz), with antenna and battery |
| Other features: |
Channel 16/9 button. Dual/triple watch. Weather alert.
SOS strobe light. JIS8/IPX8 water resistant.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.22 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.18 uV (Threshold) |
| Selectivity: | 80 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 6 W
Mid: 2.5 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dBc |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Vietnam, 2013-20xx (Discontinued) |
| Additional info: |
FCC ID: AMWUT644.
|
| Related documents: | User manual (2.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
