| GENERAL |

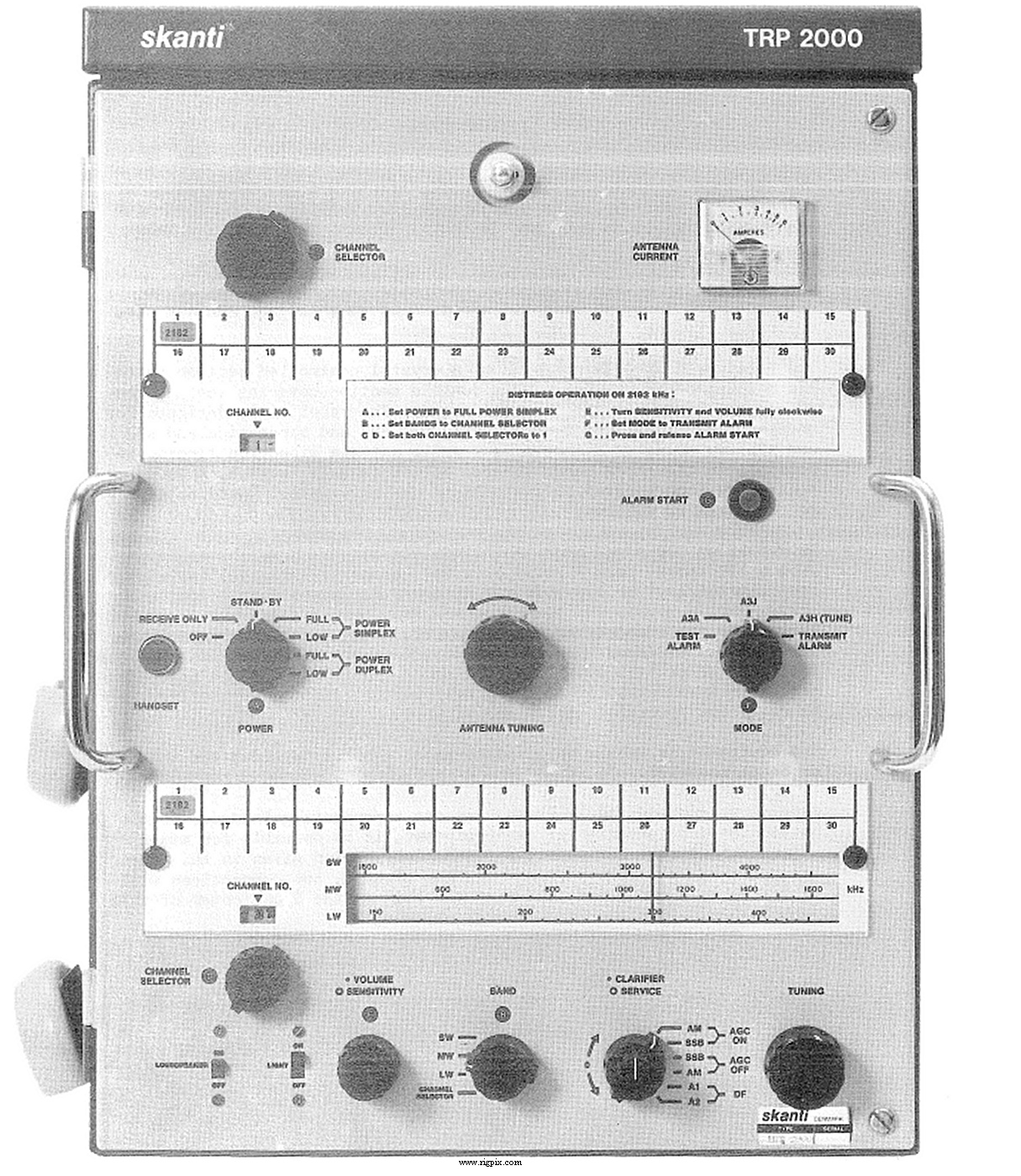

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.605-4.15 MHz
RX: 0.151-0.45 / 0.525-1.605 / 1.605-4.45 MHz
|
| Tuning steps: | TX: Channelized
RX: Channelized or VFO |
| Frequency stability: | ? ppm |
| Mode: | AM / USB / CW |
| Channels / memory management: |
30 regular (Two XTALs per channel)
|
| Duplex shift / offset: | According to configuration |
| Power supply: | Mains, 12 or 24 VDC (Depending on power pack) |
| Current drain / power consumption: | RX only: 1.5 A @ 12 VDC - 700 mA @ 24 VDC - 25 VA @ mains
TX: Max 30 A @ 12 VDC - Max 15 A @ 24 VDC - Max 500 VA @ mains |
| Antenna impedance / connector: | ? ohm / Two SO-239? |
| Dimensions (W*H*D): | 380*520*282 mm (14.96*20.47*11.1") |
| Weight: | 25 Kg (55.1 lb) |
| Other features: | Two-tone alarm generator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 1.4 MHz
|
| Sensitivity: |
AM: Better than 5 uV (10 dB S/N)
SSB: Better than 1 uV (10 dB S/N)
|
| Squelch sensitivity: | |
| Selectivity: |
AM
5.4 KHz (-6 dB)
20 KHz (-60 dB)
SSB
2.35 KHz (-6 dB)
3.9 KHz (-60 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 4 W at ?% distortion / ? ohm |
| External speaker connector: | 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: >200 W (PEP)
Low: <60 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1974-197x (Discontinued) |
| Additional info: | |
| Related documents: | User/service manual (39.9 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
P2000
P2001
P2002
|
24 VDC power pack
Mains power pack
12 VDC power pack
|
|
