| GENERAL |

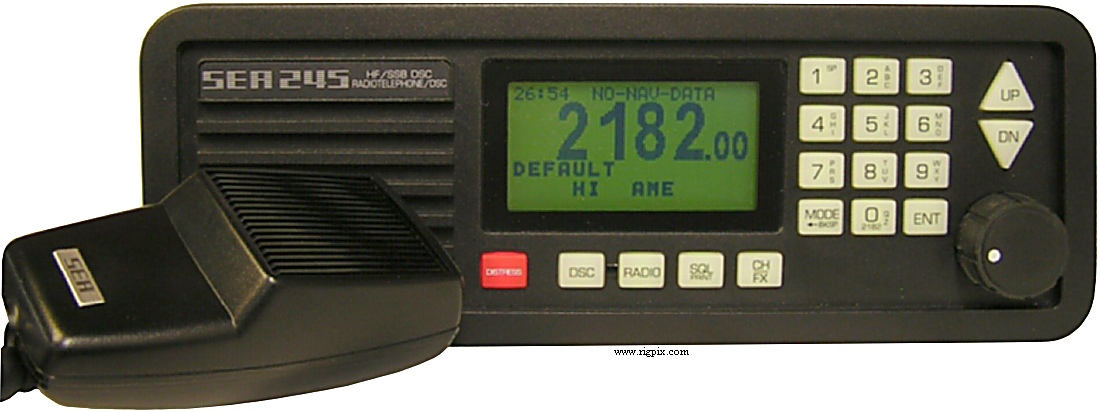

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.6-30 MHz
RX: 0.49-30 MHz and also an A3 watch receiver
NB! Ham bands are included.
|
| Tuning steps: | Channelized |
| Frequency stability: | ±10 Hz @ -30 to +60°C (-22 to 140°F) |
| Mode: | AM / SSB / CW / AFSK / Telex |
| Channels / memory management: |
200 user programmable
242 ITU SSB duplex
72 ITU SSB simplex
662 ITU FSK duplex
|
| Duplex shift / offset: | According to bandplan |
| Power supply: | 24 VDC -10/+25% |
| Current drain / power consumption: | RX: Max 1.5 A
TX: Max 8 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 267*99*278 mm (10.5*3.9*10.94") |
| Weight: | 4 Kg (9.1 lb) |
| Other features: |
DSC. RS-232C. NMEA0182. Scanning. Seator modem. SEABUSS II.
GMDSS compatible. DSP.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 45 MHz
2nd IF: 40 KHz
|
| Sensitivity: | Better than 1 uV (12 DB SINAD) |
| Squelch sensitivity: | SINAD >5 dB (Threshold) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 4 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
SSB: Max 150 W (PEP)
Telex: Max 100 W
Low: 50-75 W (PEP)
VLow: 25-40 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -65 dB |
| Microphone impedance / connector: | ? ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 2001-20xx (Discontinued) |
| Additional info: |
FCC ID: BZ6SEA245
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
