| GENERAL |

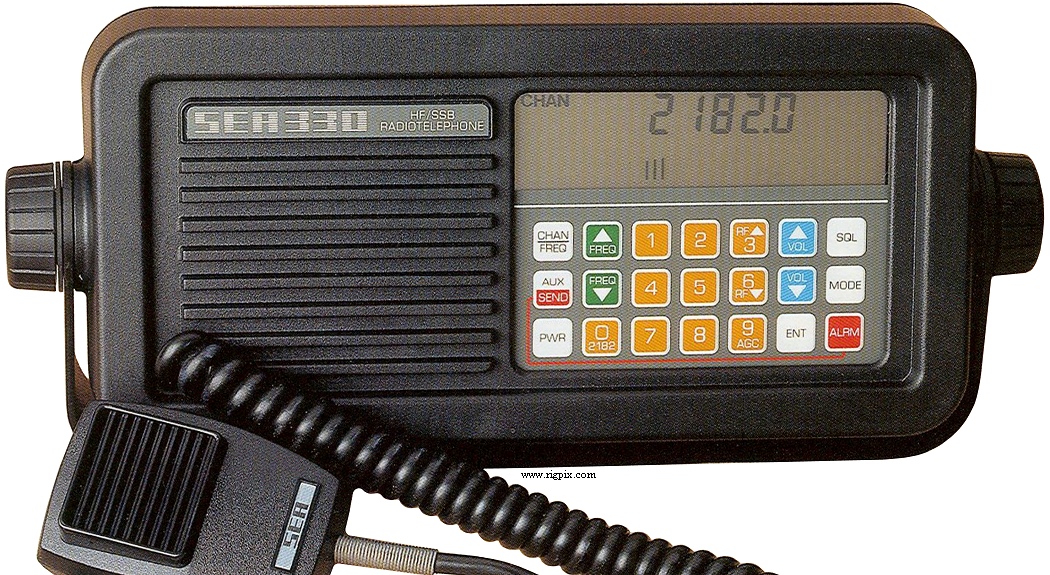

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.6-30 MHz
RX: 0.49-30 MHz
|
| Tuning steps: | Channelized in 100 Hz resolution |
| Frequency stability: | 0.4 ppm @ -30 to +50°C (-22 to +122°F) |
| Mode: | AM / SSB / Telex |
| Channels / memory management: |
90 user programmable
1000 preprogrammed
|
| Duplex shift / offset: | According to bandplan, and also programmable |
| Power supply: | 24 VDC ±15% |
| Current drain / power consumption: | RX: Max 1.5 A
TX: Max Max 15.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Radio: 356*305*185 mm (14*12*7.3")
Controller: 292*155*81 mm (11.5*6.1*3.2") |
| Weight: | Radio: 8 Kg (17.6 lb)
Controller: 1.6 Kg (3.5 lb) |
| Other features: |
2182 KHz button. Scanning. Intercom (Requires additional controller units).
GMDSS approved. Distress alarm. SEABUSS. Separate radio and controller
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 70 MHz
2nd IF: 10.7 MHz
|
| Sensitivity: |
AM: Better than 4 uV (12 dB SINAD)
SSB: Better than 1 uV (12 dB SINAD)
|
| Squelch sensitivity: | SINAD >5 dB (Threshold) |
| Selectivity: |
SSB: 2.35 KHz (No dB reference)
Telex: 500 Hz (No dB reference)
|
| Image rejection: | |
| AF output power / speaker: | 4 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Below 4 MHz: Max 150 W (PEP)
Above 4 MHz: Max 300 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -68 dB |
| Microphone impedance / connector: | ? ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1995-199x (Discontinued) |
| Additional info: |
FCC ID: BZ68RISEA330
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
1630
?
|
Antenna tuner unit
AC power supply
|
|
