| GENERAL |

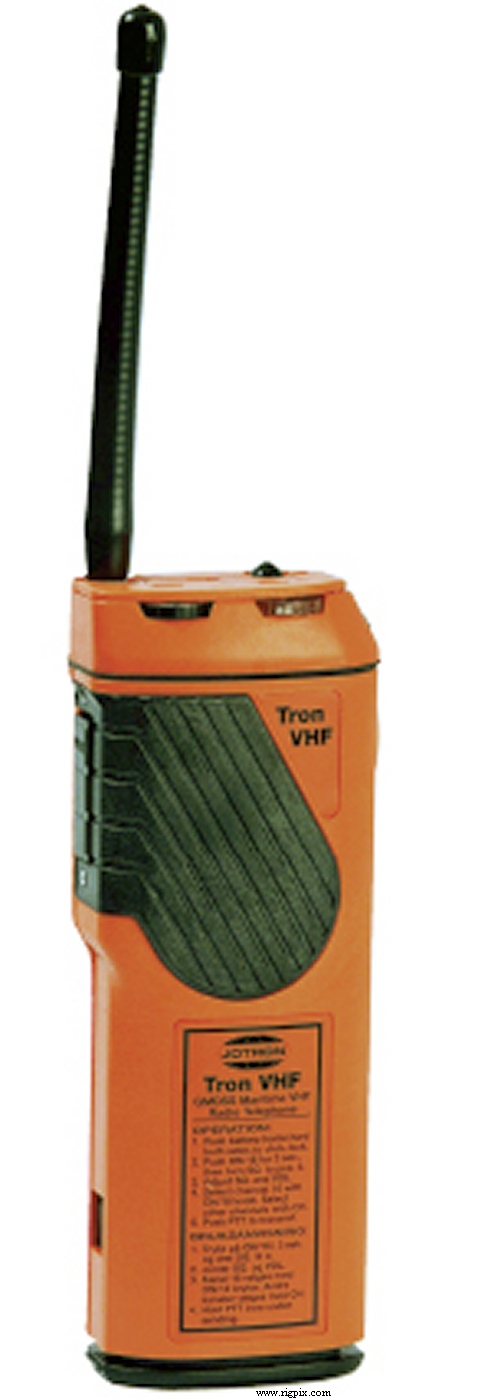

| Type: | Marine dual mode VHF transceiver |
| Frequency range: |
TX: 156 / 157 MHz
RX: 156 / 157 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
11 regular
|
| Duplex shift / offset: | No |
| Power supply: | 7.2 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 70*195*50 mm (2.76*7.68*1.97") |
| Weight: | ? g (? oz) |
| Other features: | Channel 16 button. GMDSS compliant. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | Better than 1 uV (20 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 0.25 uW |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 199x-2006 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (742 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
31030
31042
93002
93003
93024
93025
93030
93080
93475
97623
97624
97638
|
Headset, Peltor MT7H7A
Adapter cable, Peltor FL-9 with PTT
Emergency lithium battery (Non-rechargeable)
NiCd battery pack. 7.2 V, 850 mAh
Battery gasket
Spare antenna
NiCd battery pack. 7.2 V, 400 mAh
NiCd battery charger
Bulkhead bracket
Fist microphone VM-2622
Fist microphone VM-2621 (Splash proof)
GMDSS installation cabinet for three VHF
|
|
