| GENERAL |

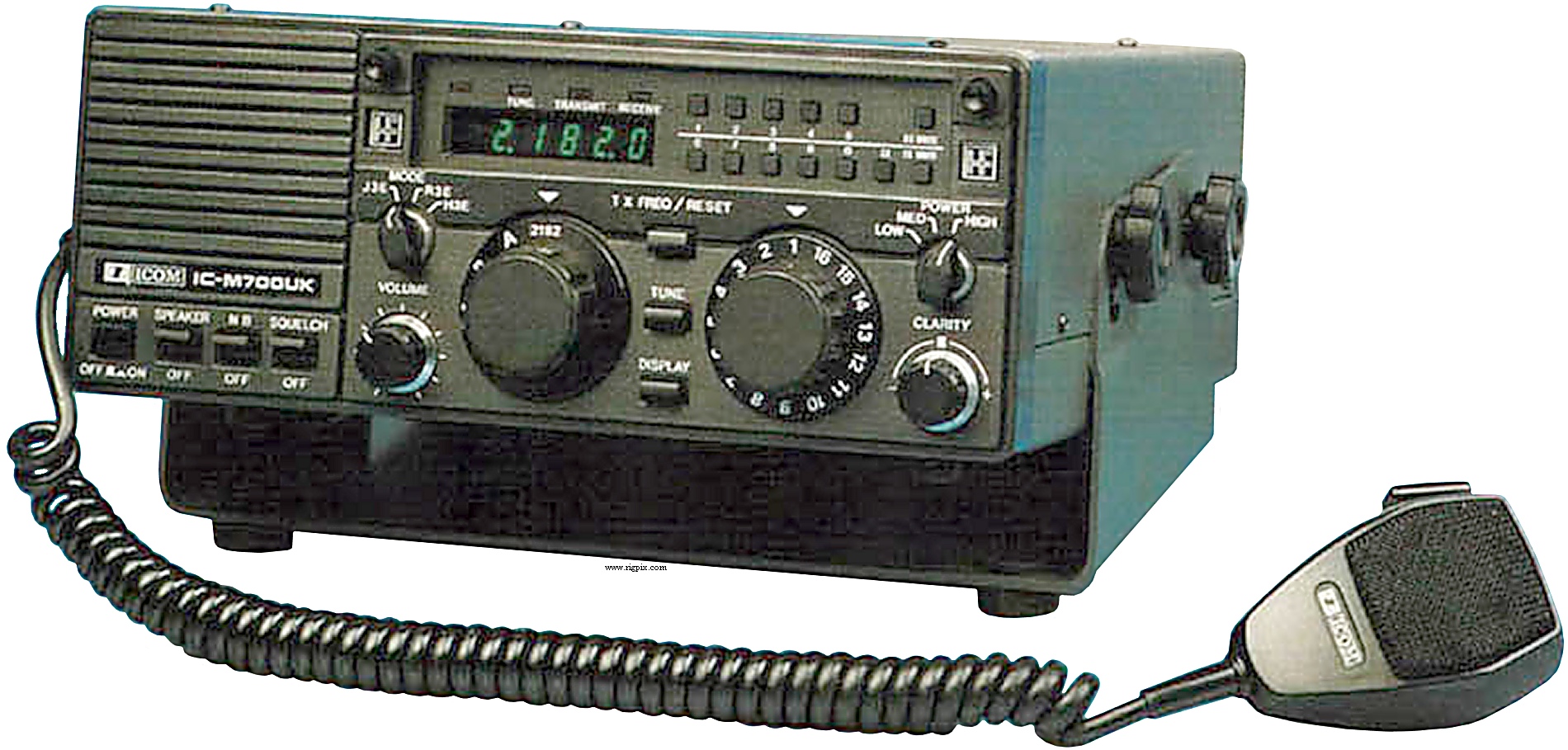

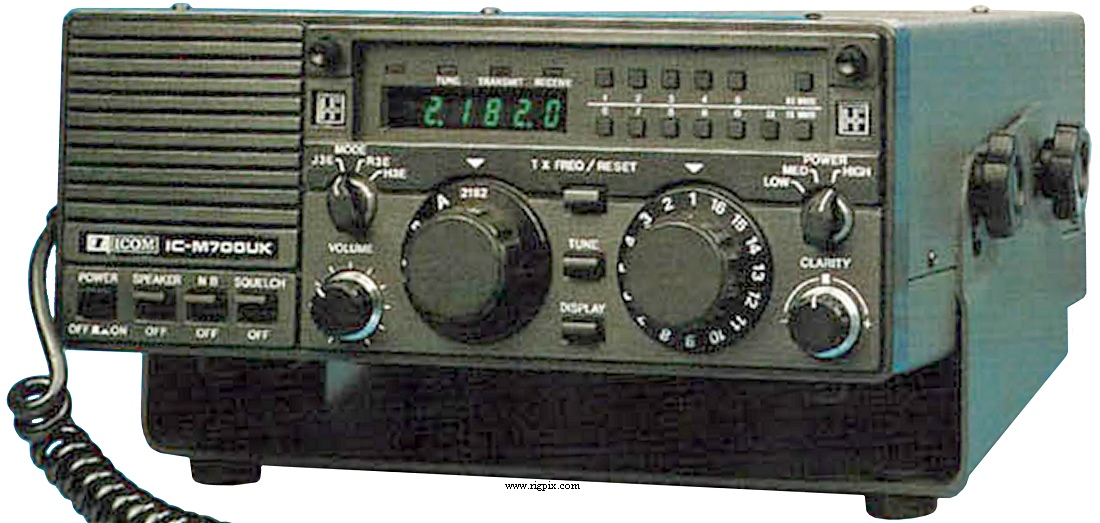

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 2-3 / 4-5 / 6-7 / 8-9 / 12-14 / 16-18 / 22-23 MHz
RX: 1.6-24 MHz
|
| Tuning steps: | Channelized or 100 Hz |
| Frequency stability: | ±20 Hz @ -30 to +60° (-22 to +140°F) |
| Mode: | A3J (SSB) / A3A / A3H |
| Channels / memory management: |
48 user programmable in three groups
|
| Duplex shift / offset: | Programmable |
| Power supply: | 13.6 VDC ±15% |
| Current drain / power consumption: | RX: 1.2-1.6 A
TX: Max 19 A (Two tone) |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 287*112*356 mm (11.3*4.41*14") |
| Weight: | 7.2 Kg (15.8 lb) |
| Other features: | 2182 KHz selector. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 7.45 MHz
2nd IF: 9.01 MHz
|
| Sensitivity: |
A3E (12 dB SINAD)
1.4 uV
SSB (12 dB SINAD)
0.5 uV
|
| Squelch sensitivity: | |
| Selectivity: |
A3E
6 KHz (-6 dB)
20 KHz (-60 dB)
SSB
2.3 KHz (-6 dB)
4.2 KHz (-60 dB)
|
| Image rejection: | 70 dB |
| AF output power / speaker: | 5 W at 10% distortion / 4 ohm |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 150 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -65 dB |
| Microphone impedance / connector: | 600 ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-120
IC-HS2
MN-100
MN-100L
SP-15
|
Automatic antenna tuner
Telephone handset
Antenna matcher (Dipole or whip)
Antenna matcher (Whip or longwire)
External speaker
|
|
