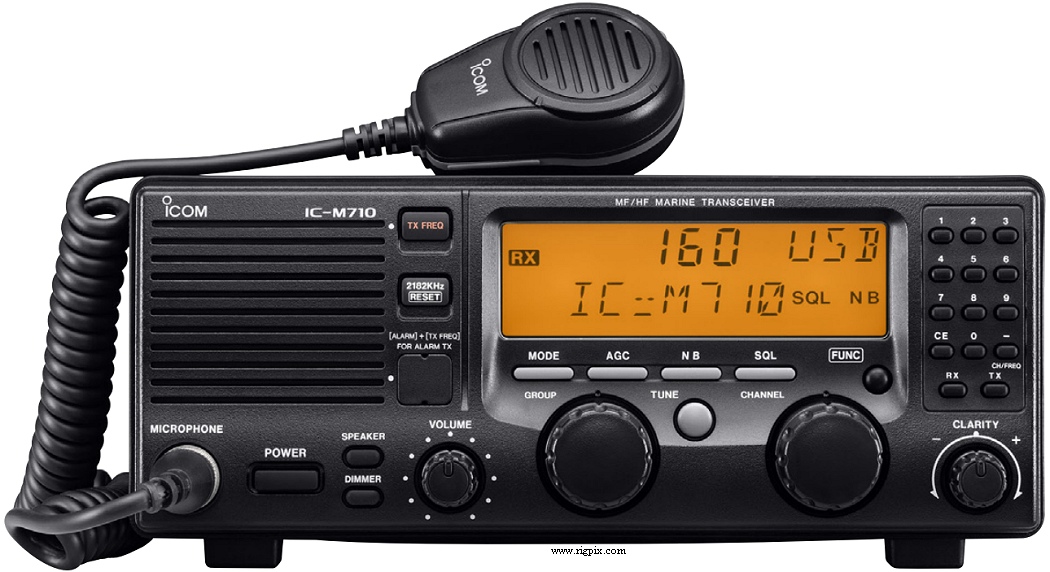

| GENERAL |
| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.6-3 / 4-5 / 6-7 / 8-9 / 12-14 / 16-20 / 22-23 / 25-27.5 MHz
RX: 0.5-30 MHz
(TX range is possible to modify for ham use)
|
| Tuning steps: | Channelized or 100 Hz |
| Frequency stability: | ±10-20 Hz @ -30 to +60° (-22 to +140°F) |
| Mode: | AM / USB / CW / AFSK / FSK |
| Channels / memory management: |
160 user programmable
242 ITU SSB duplex
72 ITU SSB simplex
662 ITU FSK duplex
Alpha tags
|
| Duplex shift / offset: | Programmable |
| Power supply: | 13.6 VDC ±15% |
| Current drain / power consumption: | RX: Max 2.5 A (General version)
RX: Max 3 A (European version)
TX: Max 30 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 292*116*315 mm (11.3*4.4*12.8") |
| Weight: | 7.9 Kg (17.4 lb) |
| Other features: | Full QSK. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 69.0115 MHz
2nd IF: 9.0115 MHz
|
| Sensitivity: |
AM (10 dB S/N)
0.5-1.6 MHz: 32 uV
1.6-1.8 MHz: 6.3 uV
1.8-30 MHz: 3.2 uV
USB/CW/AFSK/FSK (12 dB SINAD)
0.5-1.6 MHz: 6.3 uV
1.6-1.8 MHz: 1.0 uV
1.8-30 MHz: 0.5 uV
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 4.5 W at 10% distortion / 4 ohm |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
General version
Hi: 150 W (PEP) - Max 60 W above 25 MHz
Mid: 60 W (PEP)
Lo: 20 W (PEP)
European version
Hi: 150 W (PEP) - Max 60 W above 25 MHz
Low: 60 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1995-20xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (3.5 MB)
Service manual (9.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-710
AT-130
FL-100
HS-50
MN-100
MN-100L
OPC-566
|
Folded dipole antenna, 1.9-30 MHz
Antenna matcher, for longwire
CW/FSK narrow filter, 500 Hz/-6 dB
Hand set
Antenna matcher 1.5-30 MHz, including 2*8 m (26 ft) antenna wires
Antenna matcher, including 15 m (49 ft) antenna wire
Control cable for AT-130
|
|
