| GENERAL |

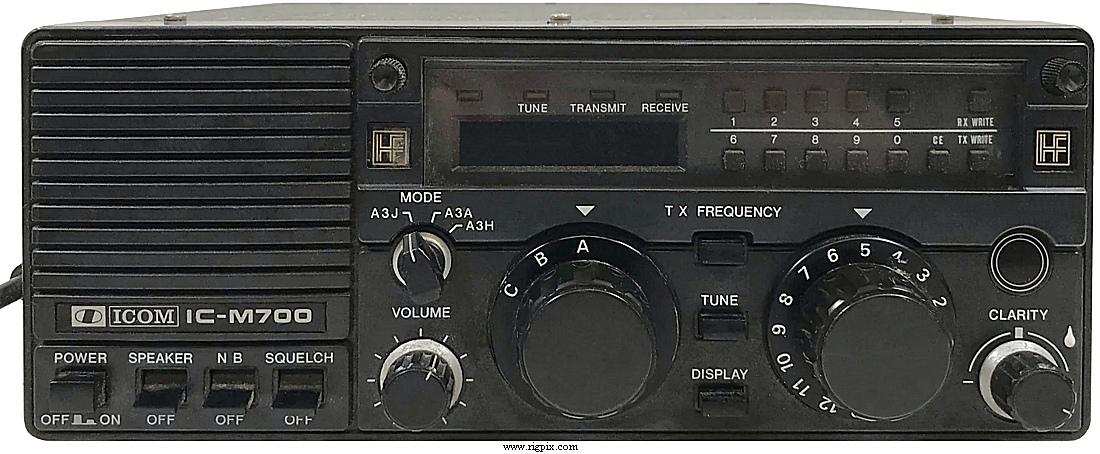

| Type: | Marine HF transceiver |
| Frequency range: |
General market
TX: 2-3 / 4-5 / 6-7 / 8-9 / 12-14 / 16-18 / 22-23 MHz
RX: 1.6-24 MHz
|
| Tuning steps: | Channelized or 100 Hz |
| Frequency stability: | ±20 Hz @ -30 to +60° (-22 to +140°F) |
| Mode: | A3J (SSB) / A3A / A3H |
| Channels / memory management: |
48 user programmable in three groups
|
| Duplex shift / offset: | |
| Power supply: | 13.6 VDC ±15% (6-pin Molex) |
| Current drain / power consumption: | RX: 1.2-1.6 A
TX: 12 A (Average voice) - Max 19 A (Two-tone) |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 287*112*356 mm (11.3*4.4*14") |
| Weight: | 7.2 Kg (15.8 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 70.45 MHz
2nd IF: 9.01 MHz
|
| Sensitivity: |
SSB (12 dB SINAD)
0.5 uV
H3E (12 dB SINAD)
1.4 uV
|
| Squelch sensitivity: | |
| Selectivity: |
SSB
2.3 KHz (-6 dB)
4.2 KHz (-60 dB)
H3E
6 KHz (-6 dB)
20 KHz (-60 dB)
|
| Image rejection: | 70 dB |
| AF output power / speaker: | 5 W at 10% distortion / 4 ohm |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 150 W (PEP)
|
| Modulation system: | SSB: Balanced modulation
H3E: Low power modulation |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -65 dB |
| Microphone impedance / connector: | 600 ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1984-198x (Discontinued) |
| Additional info: |
FCC ID: AFJ9XU IC-M700
DOC No: 202 811 090 LVC
|
| Related documents: | User manual (3.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-130
IC-HS2
MN-100
MN-100L
PS-60
PS-65
PS-66
UT-20
|
Automatic antenna tuner
Handset kit
Antenna matcher (For dipole or whip)
Antenna matcher (For whip or wire)
AC power supply. 13.6 VDC, 30 A
DC/DC-converter. 10.5-16 V to 13.6 V, 30 A
DC/DC-converter. 19-32 V to 13.6 V, 30 A
Alarm unit
|
|
