| GENERAL |

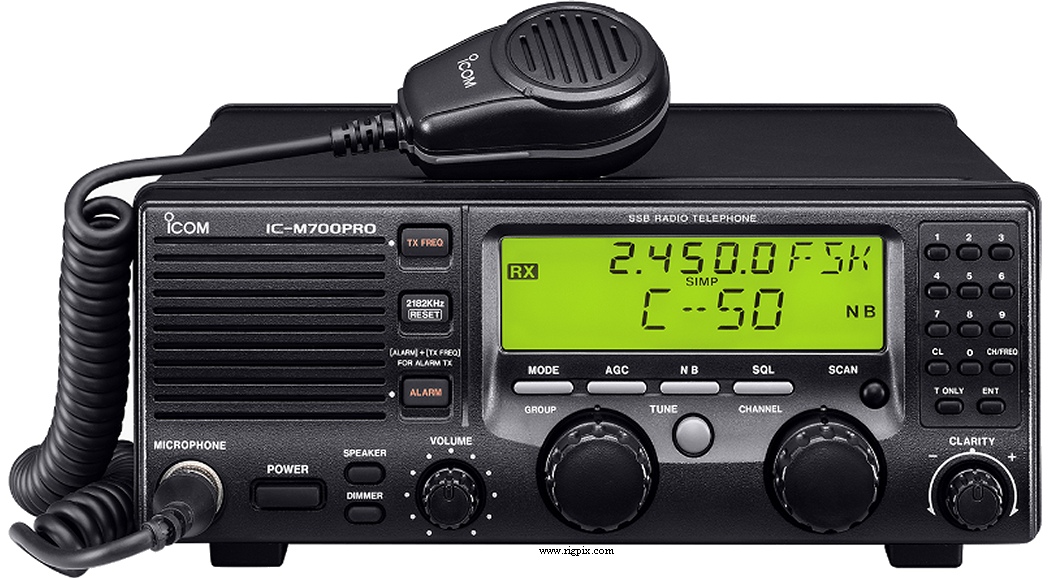

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.6-3 / 4-5 / 6-7 / 8-8.9 / 12-14 / 16-20 / 22-23 / 25-27.5 MHz
RX: 0.5-30 MHz
|
| Tuning steps: | 100 Hz |
| Frequency stability: | ±10-20 Hz @ -30 to +60°C (-22 to +140°F) |
| Mode: | AM / USB / CW / FSK / AFSK |
| Channels / memory management: |
150 programmable in three groups
|
| Duplex shift / offset: | Programmable |
| Power supply: | 13.6 VDC ±15% (6-pin Molex, on pigtail) |
| Current drain / power consumption: | RX: Max 2.5 A
TX: Max 30 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 291*116*315 mm (11.3*4.4*12.8") |
| Weight: | 7.9 Kg (17.4 lb) |
| Other features: | 2182 KHz button. Dimmer. Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? MHz
|
| Sensitivity: |
AM (10 dB S/N)
0.5-1.6 MHz: 32 uV
1.6-1.8 MHz: 6.3 uV
1.8-30 MHz: 2.2 uV
USB / CW / FSK / AFSK (12 dB SINAD)
0.5-1.6 MHz: 6.3 uV
1.6-1.8 MHz: 1 uV
1.8-30 MHz: 0.35 uV
|
| Squelch sensitivity: | |
| Selectivity: |
AM / USB / CW / FSK / AFSK
2.3 KHz (-6 dB)
CW / FSK (Narrow option)
500 Hz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 4 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Below 24 MHz: Max 150 W (PEP)
Above 24 MHz: Max 60 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -75 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1997-201x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-710
AT-130
MN-100
MN-100L
OPC-566
|
Folded dipole antenna (1.9-30 MHz)
Automatic antenna tuner
Antenna matcher (Dipoles)
Antenna matcher (Longwire)
Control cable
|
|
