| GENERAL |

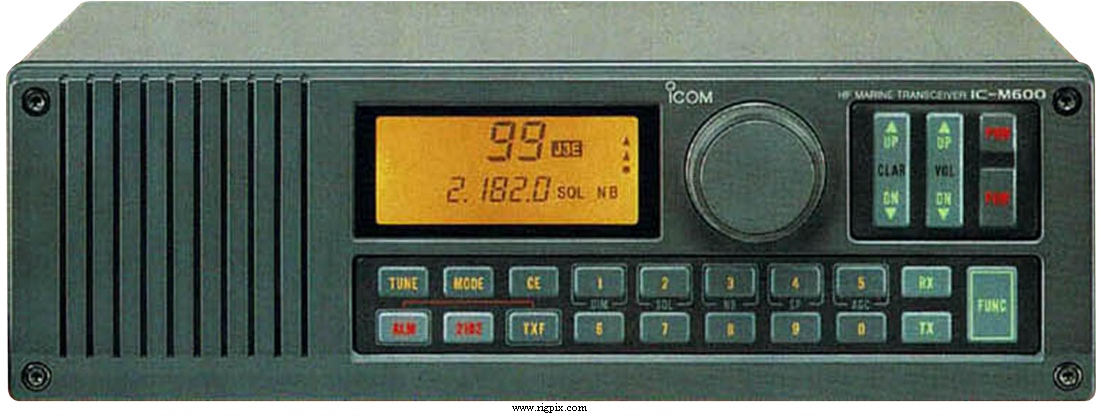

| Type: | Marine HF transceiver |
| Frequency range: |
Europe
TX: 1.6-3 / 4-5 / 6-7 / 8-9 / 12-14 / 16-20 / 22-23 MHz
RX: 0.5-30 MHz
|
| Tuning steps: | Channelized or 100 Hz |
| Frequency stability: | ±20 Hz @ -10 to +60°C (14 to +140°F) |
| Mode: | SSB / H3E (SSB with carrier) |
| Channels / memory management: |
314 preprogrammed ITU channels
99 user programmable
|
| Duplex shift / offset: | Programmable |
| Power supply: | 13.6 VDC ±15% (Female 6-pin Molex) |
| Current drain / power consumption: | RX: Max 3 A
TX: Max 30 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 287*90*233 mm (11.3*3.5*9.2") |
| Weight: | 6.75 Kg (14.9 lb) |
| Other features: |
2182 KHz button and 2-tone alarm transmit. Dimmer.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 69.0115 MHz
2nd IF: 9.0115 MHz
|
| Sensitivity: |
SSB (10 dB S/N)
0.5-2.0 MHz: 6.3 uV
2.0-30 MHz: 0.5 uV
H3E (10 dB S/N)
0.5-2.0 MHz: 32 uV
2.0-30 MHz: 3.2 uV
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 5 W at ?% distortion / 4 ohm |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 150 W (PEP)
Low: 60 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1992-199x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (2 MB)
Service manual (15.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-120E
EM-48
HS-50
MN-100
MN-100L
OPC-302
OPC-303
PS-60
PS-65
UT-62
|
Automatic antenna tuner
Hand microphone
Handset
Antenna matcher
Antenna matcher
ACC cable
ACC cable
AC power supply. 13.5 VDC, 30 A
DC/DC-converter. 10.5-16 V to 13.6 V, 30 A
Alarm unit
|
|
