Xtreme XT-1000

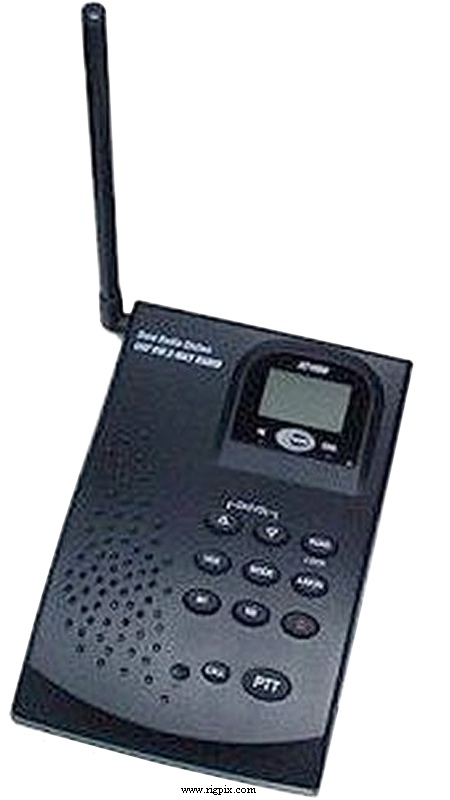

A picture of Xtreme XT-1000

SPECIFICATIONS

GENERAL
Type:License-free PMR446 transceiver
Frequency range:446.00625-446.09375 MHz
Channels / tuning steps:8
Frequency stability:? ppm
Mode:NFM
Memory channels / management:
Repeater shift / offset:Simplex only
Power supply:4.8-6 VDC (Four R6 / AA alkaline or rechargeable batteries)
or 12 VDC external
Current drain / power consumption:RX: ? mA
TX: ? mA
Antenna impedance / connector:50 ohm / Non-removable antenna
Dimensions (W*H*D):120*177*61 mm (4.72*6.97*2.4")
Weight:? g (? oz)
Other features: Base station. S-meter. Scanning. CTCSS/PL. VOX. Five ring tones.
Roger beep. Dual watch.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:500 mW (ERP)
Modulation system:
Max FM deviation (Factory set):±2.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?
Microphone input level:? mV




MISCELLANEOUS
Manufactured:2002-200x (Discontinued)
Additional info: New price 2002 in the UK: £116.00.
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
