Stabo Freecomm 700 (20700)

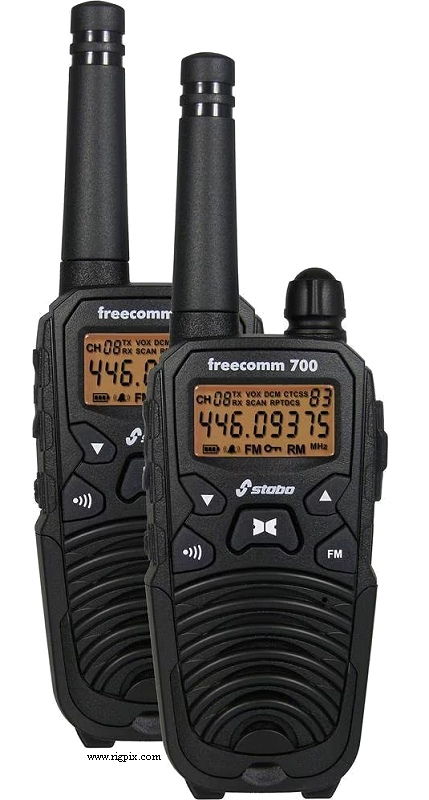

A picture of Stabo Freecomm 700 (20700)

SPECIFICATIONS

GENERAL
Type:License-free PMR446 transceiver
Frequency range:TX/RX: 446.00625-446.09375 MHz
RX only: 87.5-108 MHz
Tuning steps / channels:8
Frequency stability:? ppm
Mode:TX/RX: NFM
RX: WFM
Memory channels / management:None
Repeater shift/offset:Simplex only
Power supply:4.8-6 VDC (Four R03 / AAA alkaline or NiMH batteries)
Current drain / power consumption:RX: ? mA
TX: ? mA
Antenna impedance/connector:50 ohm / Non-removable antenna
Dimensions (W*H*D):58*175*35 mm (2.28*6.89*1.38"), including the antenna
Weight:160 g (5.64 oz), with batteries
Other features: CTCSS/PL and DCS. VOX. 15 call tones. Vibralert. Roger beep.
Scanning. Backlit display. Dual watch. LED lamp. IPX2.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:Max 500 mW (ERP)
Modulation system:
Max FM deviation (Factory set):±2.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?
Microphone input level:




MISCELLANEOUS
Manufactured:2017-202x
Additional info:New price, may 2023 in Sweden: SEK 1290:-/pair
Related documents:User manual (1.5 MB, multi language)
Modifications and fixes:
Reviews:
Options / Accessories:
KEP-425
MHS-650
Earphone-microphone
Motorcycle headset
