Rubicson Walk 'n' talk (24516)

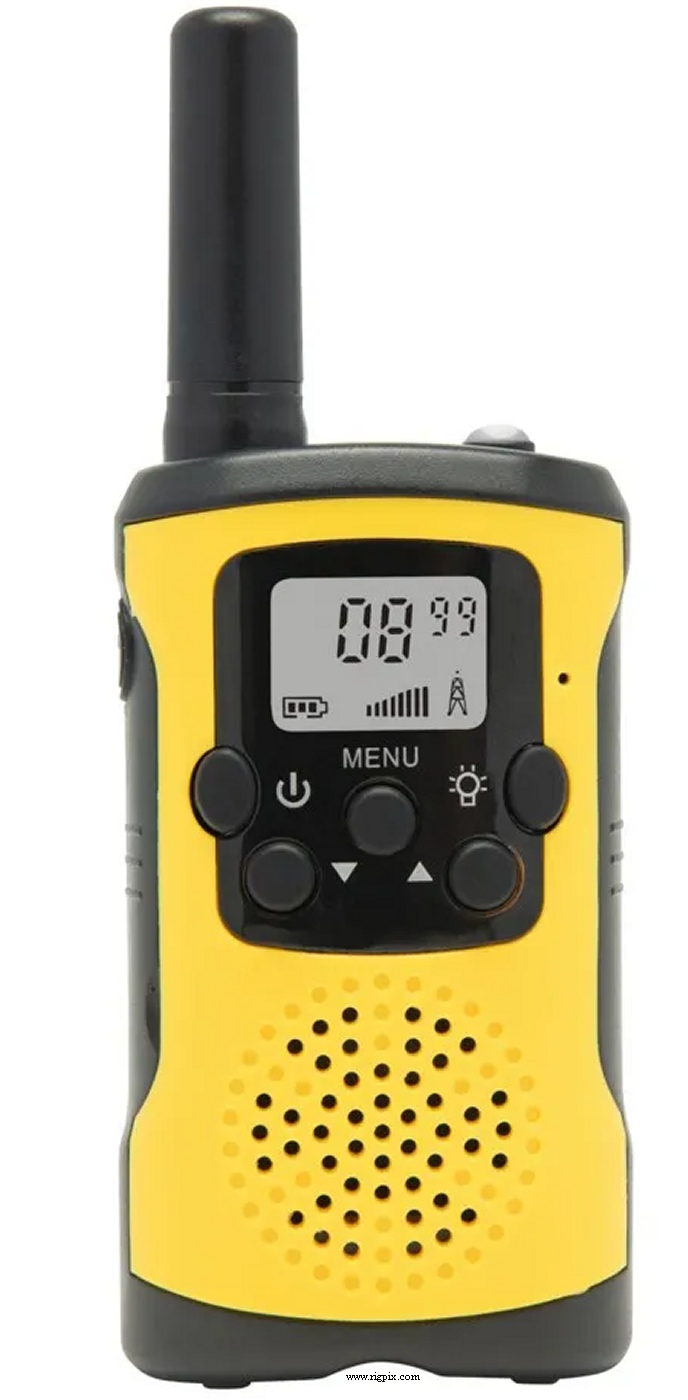

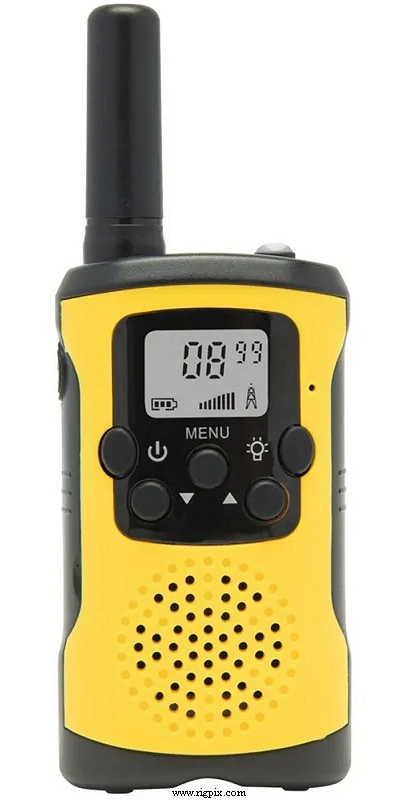

A picture of Rubicson Walk 'n' talk (24516)

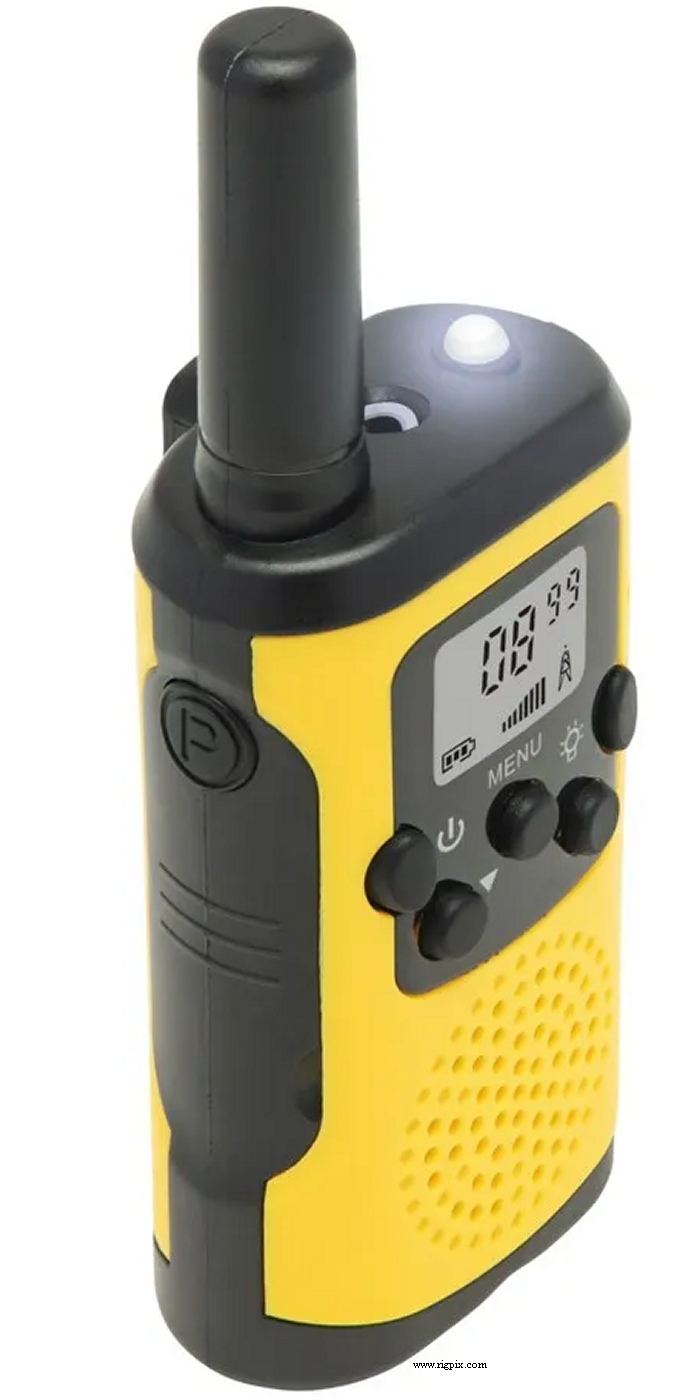

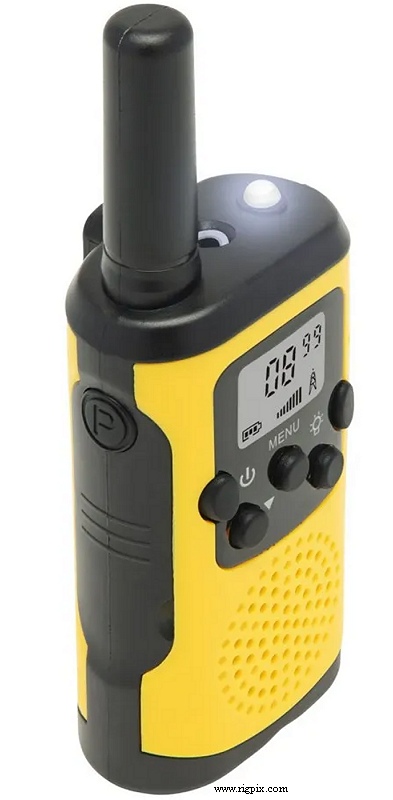

An angled view picture of Rubicson Walk 'n' talk (24516)

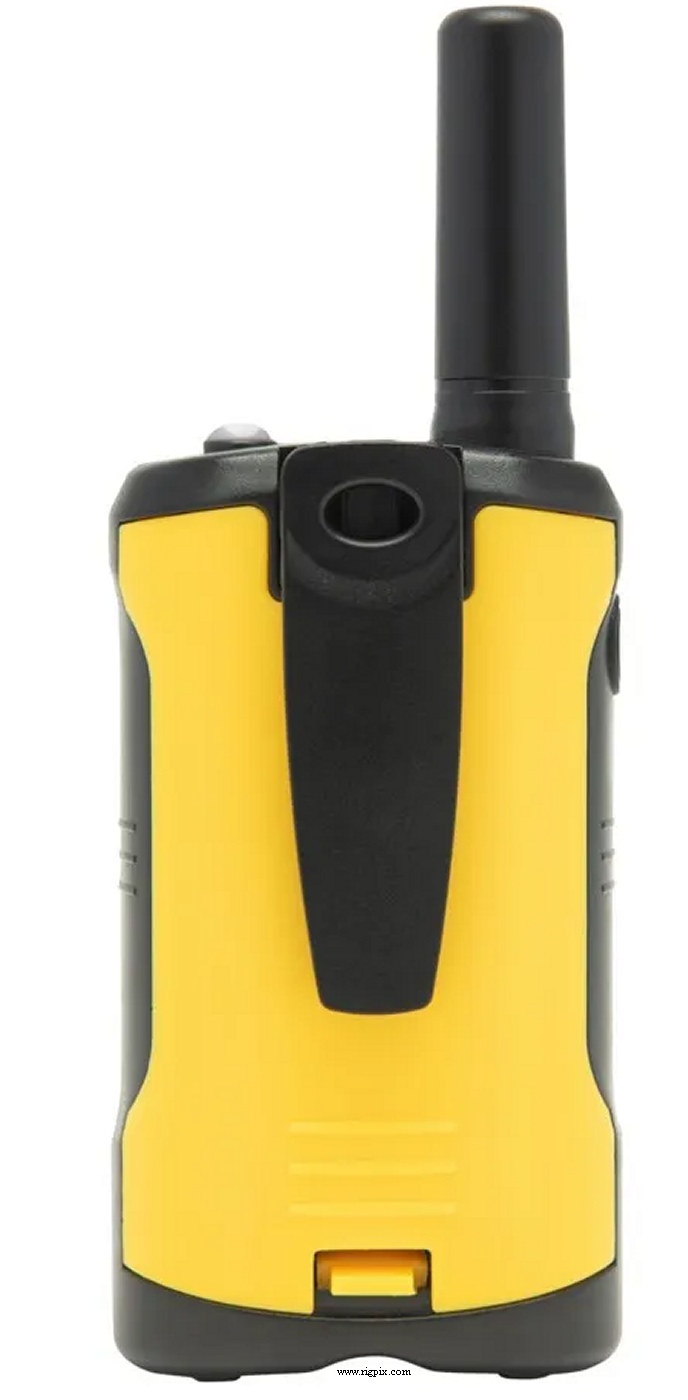

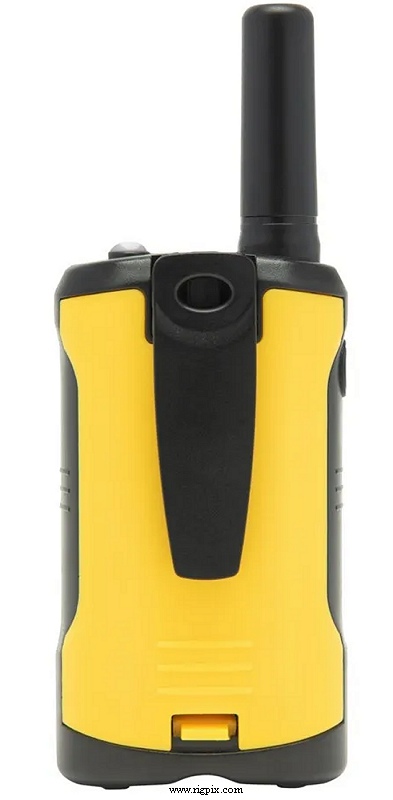

A rear picture of Rubicson Walk 'n' talk (24516)

SPECIFICATIONS

GENERAL
Type:License-free PMR446 transceiver
Frequency range:446.00625-446.09375 MHz
Tuning steps / channels:8
Frequency stability:±? ppm
Mode:NFM
Memory channels / management:
Repeater shift/offset:Simplex only
Power supply:3.6-4.5 VDC (Three LR03 / AAA alkaline or NiMH batteries)
Current drain / power consumption:RX: ? mA
TX: ? mA
Antenna impedance/connector:50 ohm / Non-removable antenna
Dimensions (W*H*D):47*128*28 mm (1.85*5.04*1.1")
Weight:65 g (2.29 oz), without batteries
Other features: CTCSS/PL. VOX. Ten call tones. Roger beep. Scanning.
Flashlight. IP54 weather proof.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:TS "Minijack" (2.5 mm)
Microphone input level:-




TRANSMITTER SECTION
RF output power:Max 500 mW (ERP)
Modulation system:
Max FM deviation (Factory set):±2.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / Internal only




MISCELLANEOUS
Manufactured:202x-202x
Additional info:New price, january 2023 in Sweden: SEK 299:90 / Pair
Related documents:User manual (3.5 MB, Eng/Swe/No)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
