| GENERAL |

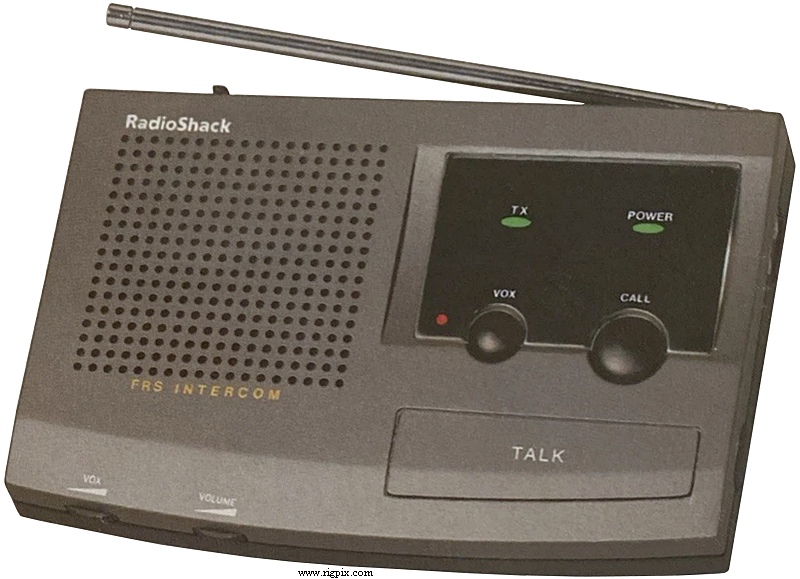

| Type: | License-free FRS transceiver |
| Frequency range: | 462.5625-467.7125 MHz |
| Channels / tuning steps: | 14 |
| Frequency stability: | ? ppm |
| Mode: | NFM |
| Memory channels / management: | - |
| Repeater shift / offset: | Simplex only |
| Power supply: | 9 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | RX: ? mA
TX: Less than 500 mA |
| Antenna impedance / connector: | 50 ohm / Non-removable antenna |
| Dimensions (W*H*D): | 178*36*120 mm (7*1.4*4.72") |
| Weight: | 350 g (12.34 oz) |
| Other features: | Base station. CTCSS/PL "Quiet codes". VOX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.5 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 45 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 500 mW (ERP) |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2000-200x (Discontinued) |
| Additional info: |
FCC ID: AAO2101845
New price 2001 in the US: $69.99
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
