| GENERAL |

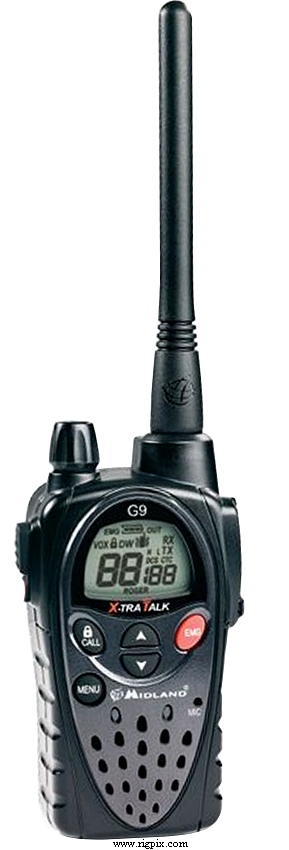

| Type: | License free dual band PMR446 / LPD transceiver |
| Frequency range: |
PMR446
446.00625-446.09375 MHz
LPD
433.075 - 434.775 MHz
|
| Channels / tuning steps: | PMR446: 8
LPD: 69 |
| Frequency stability: | ? ppm @ -20 to +55°C (-4 to +131°F) |
| Mode: | PMR446: NFM
LPD: FM |
| Memory channels / management: |
16 presets (9p to 24p) with the basic 8 channels plus various tone settings
|
| Repeater shift / offset: | Simplex only |
| Power supply: | 4.8-6 VDC (Four R6 / AA alkaline or NiMH batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance/connector: | 50 ohm / Non-removable antenna |
| Dimensions (W*H*D): | 58*110*32 mm (2.28*4.33*1.26") |
| Weight: | 114 g (4.02 oz), without batteries |
| Other features: |
CTCSS/PL and DCS. Vibracall. VOX with talkback. Roger beep.
Five call tones. Dual watch. Scanning. Emergency button.
Backlit display. IPX5 water resistant. Out-of-range function.
Longer antenna for better range. Dual PTT.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
PMR446:
Hi: 500 mW (ERP)
Lo: 10 mW (ERP)
LPD:
10 mW (ERP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | PMR446: ±2.5 KHz
LPD: ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 20xx-20xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (10.3 MB, Multilanguage)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
