| GENERAL |

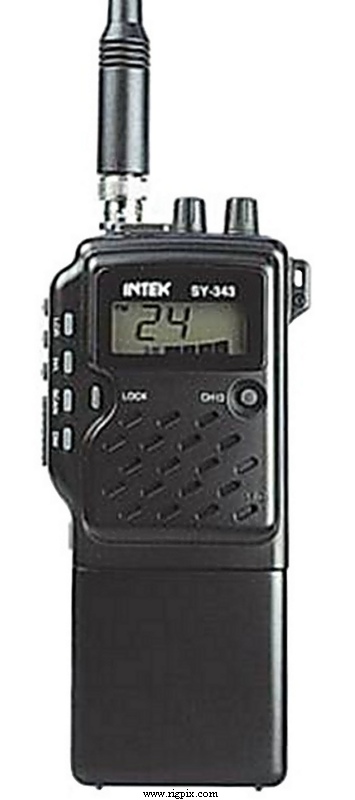

| Type: | License-free "43 MHz Italy" transceiver |
| Frequency range: |
Standard
43.300-43.5875 MHz
After modification
42.300-45.0875 MHz
|
| Channels / tuning steps: | 24 (224 after modification) / 12.5 KHz |
| Frequency stability: | ? ppm |
| Mode: | NFM |
| Memory channels / management: | |
| Repeater shift / offset: | Simplex only |
| Power supply: | 10.8-13.5 VDC (Nine R6 / AA alkaline or NiMH batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? oz) |
| Other features: | Dual watch. Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea, 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AC-101
BP-106
CAR-101
LC-101
SY-90
|
AC adapter/charger, 230 VAC. For charging SY-90
Dry cell battery pack. For 6*LR6/AA batteries)
Mobile car adapter, with cigarette lighter plug and SO-239
Soft carrying case
NiMH battery pack. 10.8 V
|
|
