| GENERAL |

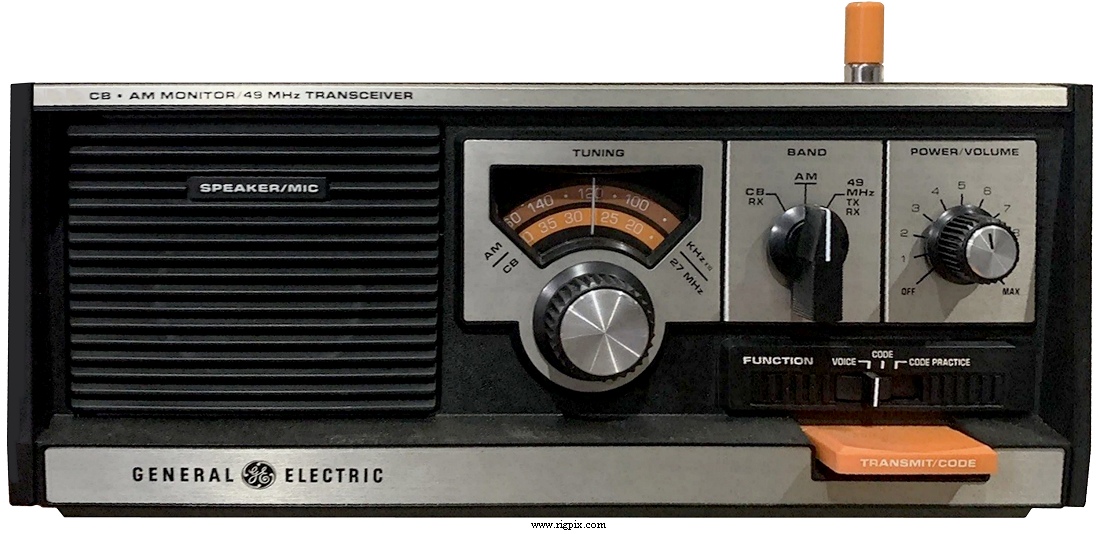

| Type: | License-free "49 MHz USA" transceiver |
| Frequency range: |
TX: 49.830-49.890 MHz
RX: 0.54-1.61 / 26.965-27.405 / 49.830-49.890 MHz
|
| Channels / tuning steps: |
49 MHz
1 (Channel C: 49.860 MHz, XTAL controlled)
AM / CB
VFO: Analog / continuous
|
| Frequency stability: | ? ppm |
| Mode: | TX: FM
RX: AM / FM |
| Memory channels / management: | None |
| Repeater shift / offset: | Simplex only |
| Power supply: | 9 VDC (Six LR20 / D alkaline batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | - / Built-in telescopic whip |
| Dimensions (W*H*D): | 295*130*110 mm (11.6*5.1*4.3") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: | Morse code key. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 10 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1978-1979 (Discontinued) |
| Additional info: |
This is the base station part of the 3-5945 system.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
