| GENERAL |

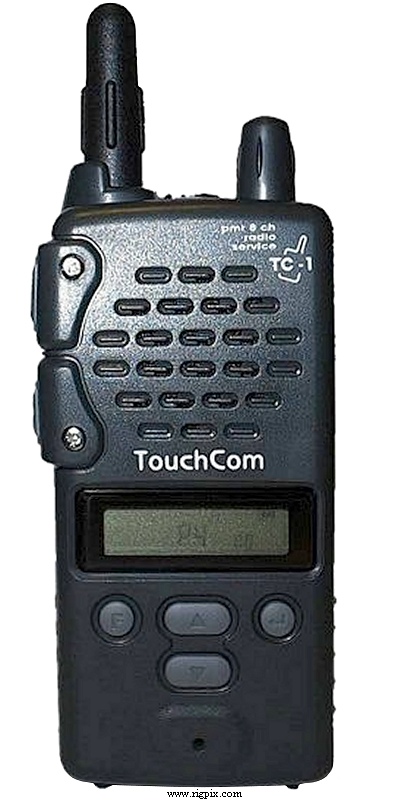

| Type: | License-free PMR446 transceiver |
| Frequency range: | 446.00625-446.09375 MHz |
| Channels / tuning steps: | 8 |
| Frequency stability: | ? ppm |
| Mode: | NFM |
| Memory channels / management: | None |
| Repeater shift / offset: | Simplex only |
| Power supply: | 4.8-6 VDC (Four R03 / AAA alkaline or rechargeable batteries) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / Non-removable antenna |
| Dimensions (W*H*D): | 52*105*28 mm (2.05*4.13*1.1") |
| Weight: | 90 g (3.18 oz), without batteries) |
| Other features: | CTCSS/PL. VOX. Scanning. Roger beep. Dual watch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.3 uV (12 dB S/N) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 500 mW (ERP)
Low: 50 mW (ERP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ? |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2001-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
