| GENERAL |

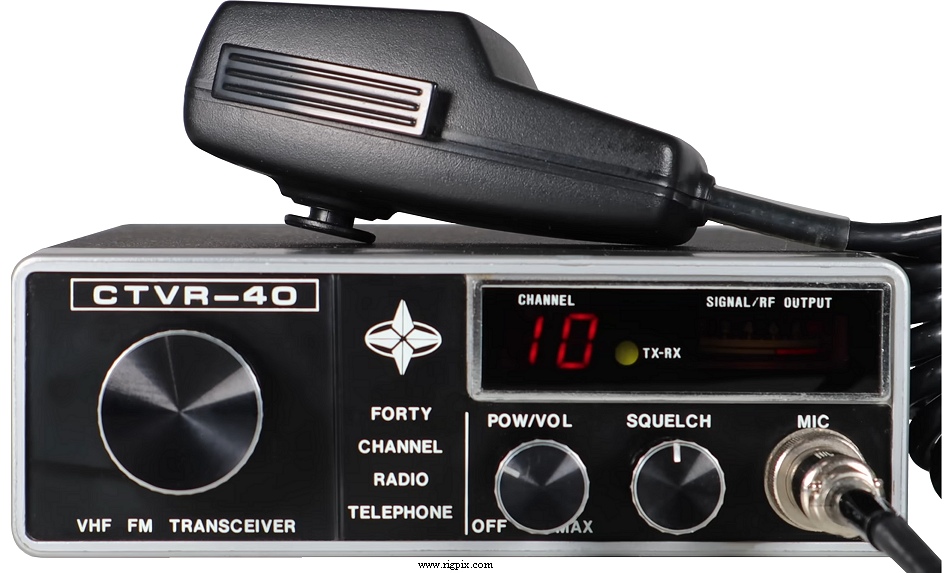

| Type: | License-free "49 MHz UK" MPT1336 transceiver (Not really) |
| Frequency range: |
46.000-46.390 MHz according to ads, but it appears that
these units were mainly modified for the 49 MHz segment.
|
| Channels / tuning steps: | 40 |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Memory channels / management: | No |
| Repeater shift / offset: | Simplex only |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1981-1981 (Discontinued) |
| Additional info: |
Imported to the UK by Castlegate TeleVision and Radio (CTVR) in Grantham, in
an attempt to spark activity in the band. The CTVR-40 was however way too
powerful for MPT1336 compliance, and its use was therefore highly illegal.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
