| GENERAL |

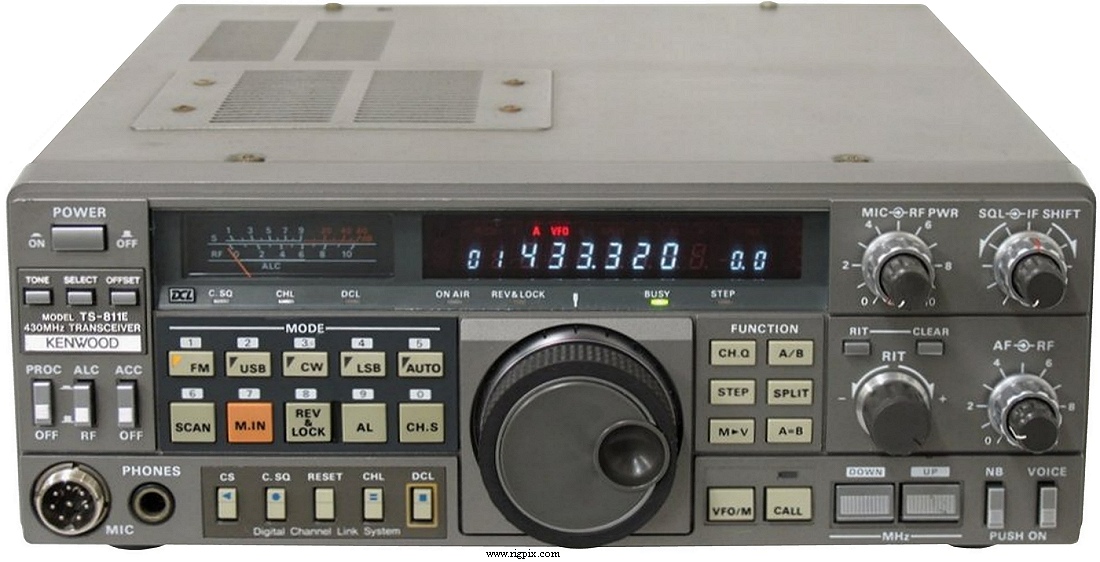

| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 430-440 MHz
RX: 430-440 MHz
|
| Tuning steps: | 10 / 100 Hz
1 / 5 / 12.5 KHz |
| Frequency stability: | ±1.2 KHz @ 1 to 60 minutes after power on
Within 50 Hz every 30 minutes thereafter |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
35 regular
3 odd split
2 scan edge
1 Com (Call)
RAM storage with lithium battery backup
|
| Repeater shift / offset: | -1.6 MHz and -7.6 MHz |
| Power supply: | Mains: 120 / 220 / 240 VAC (3-pin IEC C14 connector)
or 12-16 VDC |
| Current drain / power consumption: | RX: Max 1.4 A
TX: Max 8 A |
| Antenna impedance / connector: | 50 ohm / N-jack |
| Dimensions (W*H*D): | 270*96*260 mm (10.6*3.8*10.2") |
| Weight: | 7.2 Kg (15.9 lb) |
| Other features: | 1750 Hz repeater tone. DCS. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.265 MHz
2nd IF: 10.695 MHz (SSB/CW), 455 KHz (FM)
|
| Sensitivity: |
FM: 0.22 uV (12 dB SINAD)
SSB/CW: 0.14 uV (10 dB S+N/N)
|
| Selectivity: |
FM
12 KHz (-6 dB)
24 KHz (-60 dB)
SSB/CW
2.2 KHz (-6 dB)
4.8 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| FM: | 2-25 W |
| SSB (PEP): | 2-25 W |
| CW: | 2-25 W |
|
| Modulation system: | FM: Reactance
SSB: Balanced |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1984-19xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (14.1 MB)
Service manual (14.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CD-10
HS-5
HS-6
MB-430
MC-42S
MC-48
MC-60A
MC-80
MC-85
PG-2J
SP-430
VS-1
|
Callsign display
Headphones
Headphones
Mobile mount kit
Hand microphone with up/down buttons
Hand microphone with DTMF keypad
Desk microphone
Electret desk mirophone
Deluxe electret desk microphone
DC cable
External speaker
Voice synthesizer unit
|
|
