| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
Australia
TX: 10-160 m + WARC
RX: 0.15-30 MHz
|
| Tuning steps: | 10 / 100 Hz
1 MHz |
| Frequency stability: |
Within ±200 Hz from 1 to 60 minutes after power on.
Within ±30 Hz any 30 minute period thereafter.
|
| Mode: | AM / SSB / CW (FM option) |
| Channels / memory management: |
8 regular (No. 6 & 7 establishes upper and lower band search limits)
RAM storage with lithium battery backup
|
| Repeater shift / offset: | No dedicated. Use VFO A/B split instead |
| Power supply: | 12-16 VDC |
| Current drain / power consumption: | RX: 1.2 A
TX: Max 20 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 270*96*275 mm (10.6*3.8*275") |
| Weight: | 6.5 Kg (14.3 lb lb) |
| Other features: | IF shift. Notch filter. VOX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/SSB/CW)
1st IF: 48.055 MHz
2nd IF: 8.83 MHz
Triple conversion superheterodyne (FM option)
1st IF: 48.055 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
|
| Sensitivity: |
AM (10 dB S/N)
0.15-0.5 MHz: 13 uV
0.5-1.8 MHz: 40 uV
1.8-30 MHz: 2.5 uV
FM (12 dB SINAD), with FM-430 option
1.8-30 MHz: 0.7 uV
SSB/CW (10 dB S/N)
0.15-0.5 MHz: 1 uV
0.5-1.8 MHz: 4 uV
1.8-30 MHz: 0.25 uV
|
| Selectivity: |
AM
6 KHz (-6 dB)
12 KHz (-60 dB)
FM (With FM-430 option)
15 KHz (-6 dB)
32 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.4 KHz (-60 dB)
|
| Image rejection: | 70 dB |
| AF output power / speaker: | 1.5 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| AM: | ~40 W (60 W input) |
| FM: | ~60 W (120 W input) |
| SSB (PEP): | ~110 W (250 W input) |
| CW (DC): | ~100 W (200 W input) |
|
| Modulation system: |
AM: Low level modulation (IF stage)
FM: Variable reactance direct shift
SSB: Balanced modulation
|
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 500 ohm to 5 Kohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1983-198x (Discontinued) |
| Additional info: |

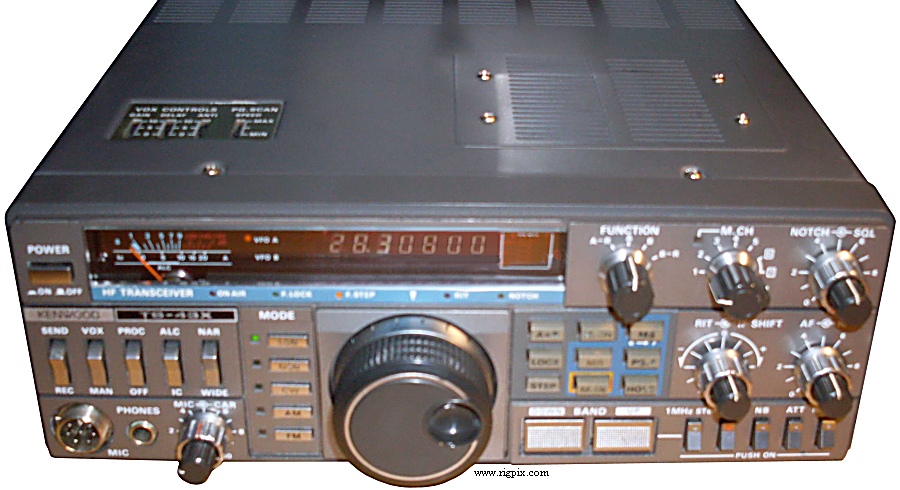

This is the australian version of TS-430S. The performance and features are
identical and the only difference is that out-of-amateur band transmission
is not possible. This was to comply with new government regulations at the time.
New price 1983 in Australia: $1150.00 AUD
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-130
AT-250
FM-430
HC-10
HS-5
HS-6
MB-430
MC-60A
PS-430
SP-430
YK-88A
YK-88C
YK-88CN
YK-88SN
|
Antenna tuner, 10-80 m
Automatic antenna tuner, 10-160 m
FM unit
Digital world clock
Deluxe communications headphones
Lightweight communications headphones
Mobile mounting bracket
Desk microphone
Power supply, 13.8 VDC, 20 A (25% duty cycle)
External speaker, 8 ohms
6 KHz AM filter
500 Hz CW filter
270 Hz CW filter
1.8 KHz SSB filter
|
|
