| GENERAL |

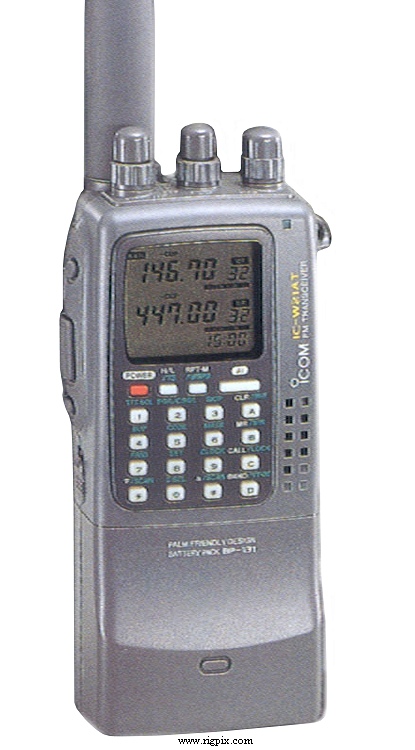

| Type: | Amateur VHF/UHF transceiver |
Frequency range
depending on version: |
USA
TX: 144-148 / 440-450 MHz
RX: 100-995 MHz
Australia
TX: 144-148 / 430-440 MHz
RX: 100-995 MHz
NB! The wide RX frequency range may require modification
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: | TX: FM
RX: AM / FM |
| Channels / memory management: |
64 regular (32 per band)
2 repeater (1 per band)
2 call (1 per band)
2 scan edge pairs (1 per band)
Priority function
RAM storage with rechargeable backup battery (Supercap?)
|
| Repeater shift / offset: | ±0 to 60 MHz in selected step size |
| Power supply: | 7.2-12 VDC (Depending on battery pack)
or 6-16 VDC external (Barrel connector, center positive) |
| Current drain / power consumption: | RX: 15-200 mA
TX: 0.5-1.5 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 57*125*35 mm (2.24*4.92*1.38") |
| Weight: | 390 g (13.76 oz), with BP-157 and antenna |
| Other features: |
CTCSS/PL (Pre-installed in USA version). Cross band repeater function.
DTMF. Clock/timer. Backlit display. Twin RX (V+U, V+V or U+U reception).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 43.1 MHz (VHF) - 45.15 MHz (UHF)
2nd IF: 455 KHz
|
| Sensitivity: | 2 m/70 cm: 0.16 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 | E Low |
|---|
| 2 m: | 2-5 W | 2-3.5 W | 1.5 W | 500 mW | 15 mW |
| 70 cm: | 2-5 W | 2-3.5 W | 1.5 W | 500 mW | 15 mW |
The high and low3 power settings depend on voltage / battery pack.
|
| Modulation system: | Variable reatance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / 3-conductor (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1992-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (5.9 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-25
AD-28
BC-77A
BC-77D
BC-77E
BC-77V
BC-79
BP-130
BP-131
BP-132
BP-157
CP-13L
FA-B270A
HM-9
HM-30
HM-46
HM-54
HM-55A
HM-75
HS-51
LC-105
LC-106
OPC-288L
SP-13
UT-63
|
Battery charge adapter
Battery pack adapter
Wall charger. 12 VDC, 100 mA
Wall charger. 12 VDC, 100 mA (For 220 VAC)
Wall charger. 12 VDC, 100 mA
Wall charger. 12 VDC, 100 mA
Desktop rapid charger
Battery case (Six LR6/AA batteries)
NiCd battery pack. 7.2 V, 900 mAh
NiCd battery pack. 12 V, 600 mAh
NiCd battery pack. 7.2 V, 900 mAh
Cigarette lighter cable with noise filter
Dual band flexible antenna
Speaker-microphone
Mounting bracket
Speaker-microphone
Speaker-microphone
Speaker-microphone with DTMF keypad
Speaker-microphone with remote control buttons
Headset with VOX & PTT
Carrying case, for use with BP-130, BP-131 & BP-157
Carrying case, for use with BP-132
DC power cable
Earphone
CTCSS/PL unit
|
|
