Icom IC-W21E

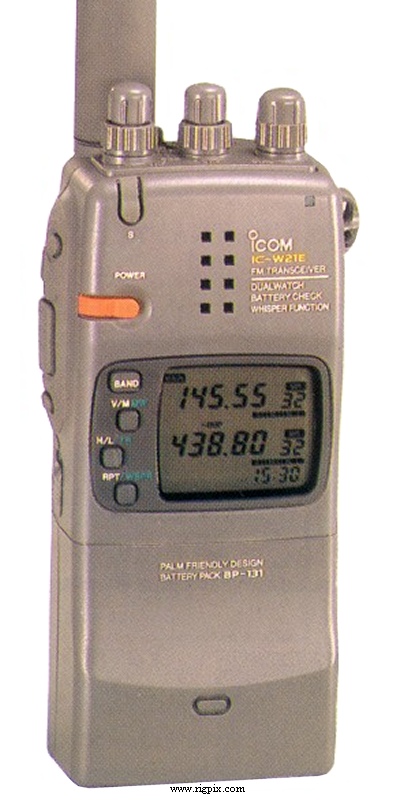

A picture of Icom IC-W21E

SPECIFICATIONS

GENERAL
Type:Amateur VHF/UHF transceiver
Frequency range: Europe, general
TX: 144-146 / 430-440 MHz
RX: 100-950 MHz
Italy
TX: 144-148 / 430-440 MHz
RX: 100-950 MHz

NB! The wide RX frequency range may require modification
Tuning steps:5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
Frequency stability:5 ppm @ 0 to 50C (32 to 122F)
Mode:FM
Channels / memory management: 64 regular (32 per band)
2 repeater (1 per band)
2 call (1 per band)
2 scan edge pairs (1 per band)
Priority function
RAM storage with rechargeable backup battery (Supercap?)
Repeater shift / offset:0 to 60 MHz in selected step size
Power supply:6-12 VDC (Battery pack) or 5-16 VDC external
Current drain / power consumption:RX: 15-200 mA
TX: Max 1.5 A
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):57*125*35 mm (2.24*4.92*1.38"), with BP-157
Weight:390 g (13.76 oz)
Other features:Easy & multi-function mode. Clock. 1750 Hz tone call. Twin RX.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 43.1 MHz (VHF) - 35.8 MHz (UHF)
2nd IF: 455 KHz
Sensitivity:2 m/70 cm: 0.16 uV (12 dB SINAD)
Selectivity:15 KHz (-6 dB)
30 KHz (-60 dB)
Image rejection:60 dB
AF output power / speaker:200 mW at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power:

High
@ 12V
Low3Low2Low1EL
2 m:5 W3.5 W1.5 W500 mW15 mW
70 cm:5 W3.5 W1.5 W500 mW15 mW
Modulation system:Variable reactance frequency modulation
Max FM deviation (Factory set):5 KHz
Spurious emissions:Better than -60 dB
Microphone impedance / connector:2 Kohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1992-199x (Discontinued)
Additional info:New price 1992 in Sweden: SEK 4000:-
Related documents:User manual (2.6 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
