Icom IC-R10

A picture of Icom IC-R10

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:0.5-1300 MHz (Cellular blocked in the US)
Tuning steps: 100 / 500 Hz, 1 / 5 / 6.25 / 8 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz
A user defined tuning step between 0.1-999.9 KHz is also available
Frequency stability:? ppm
Mode:AM / FM / WFM / SSB / CW
Channels / memory management: 800 regular in 16 banks @ 6.25 channels per secon
100 auto memory write
100 program skip
Alpha tags
Priority watch
Non-volatile EEPROM storage
Power supply:4.8-6 VDC (Four R6/AA alkaline or NiCd cells)
or 4.8-16 VDC external
Current drain / power consumption:38-180 mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):58*130*31 mm (2.28*5.12*1.22")
Weight:310 g (10.93 oz)
Other features:CI-V. VSC. Bandscope. Attenuator. NB/ANL. AFC. Sleep timer.




RECEIVER SECTION
Receiver system: Triple conversion superheterodyne
1st IF: 266.7 MHz (340-1000 MHz)
1st IF: 429.1 MHz (Except above frequencies)
2nd IF: 10.7 MHz
3rd IF: 455 KHz

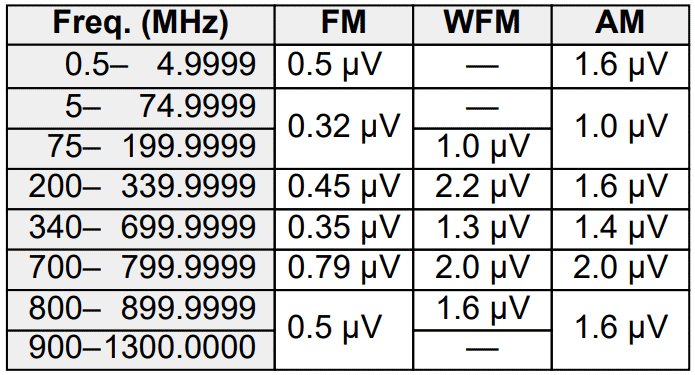

Sensitivity: AM
0.5-5 MHz: 1.6 uV
5-200 MHz: 1.0 uV
200-340 MHz: 1.6 uV
340-700 MHz: 1.4 uV
700-800 MHz: 2.0 uV
800-1300 MHz: 1.6 uV
FM
0.5-5 MHz: 0.5 uV
5-200 MHz: 0.32 uV
200-340 MHz: 0.45 uV
340-700 MHz: 0.35 uV
700-800 MHz: 0.79 uV
800-1300 MHz: 0.5 uV
WFM
75-200 MHz: 1.0 uV
200-340 MHz: 2.2 uV
340-700 MHz: 1.3 uV
700-800 MHz: 2.0 uV
800-900 MHz: 1.6 uV
SSB/CW
0.5-5 MHz: 0.4 uV
5-200 MHz: 0.25 uV
200-340 MHz: 0.4 uV
340-700 MHz: 0.32 uV
700-800 MHz: 0.63 uV
800-1300 MHz: 0.4 uV
Selectivity: AM/FM
15 KHz (-6 dB)
WFM
150 KHz (-6 dB)
SSB
4 KHz (-6 dB)
Image rejection:
AF output power / speaker:120 mW at 10% distortion / 8 ohm
External speaker connector:3.5 mm (3-conductor)




MISCELLANEOUS
Manufactured:Japan, 1996-1999 (Discontinued)
Additional info:New price 2001 in Sweden: SEK 4990:-
Related documents: User manual (1.2 MB)
Service manual (15.5 MB)
Modifications and fixes:
Reviews:Monitoring Times: March 1997
Options / Accessories:
CP-12L
CS-R10
CT-17
HP-4
LC-140
OPC-254L
OPC-474
OPC-478
SP-13
Cigarette lighter cable with noise filter
Cloning software
CI-V level converter
Headphones
Carrying case
DC cable. For 4.5 to 16 VDC external power
Cloning cable (Radio-to-radio)
Cloning cable, RS-232C (Radio-to-computer)
Earphone
