| GENERAL |

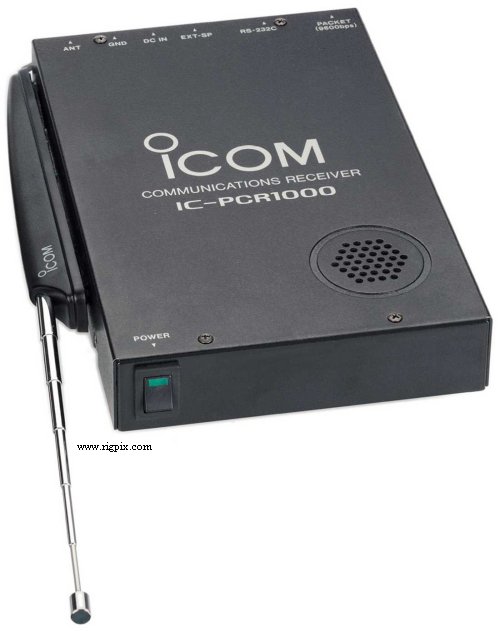

| Type: | Computer controlled HF/VHF/UHF receiver/scanner |
| Frequency range: | 0.01-1300 MHz (Cellular blocked in the US) |
| Tuning steps: | Down to 1 Hz |
| Frequency stability: | ±3 ppm @ 1300 MHz (0-50°C - 32-122°F) |
| Mode: | AM / FM / WFM / SSB / CW |
| Channels / memory management: |
? regular in ? banks. Alpha tags.
? programmed scan ranges
Non-volatile EEPROM storage
|
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | 100-700 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 128*30*199 mm (5.04*1.18*7.84") |
| Weight: | 1 Kg (2.2 lb) |
| Other features: |
RS-232C. 1200/9600 bd TNC jack. IF Shift. Bandscope.
NB. VSC. AFC. CTCSS/PL.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (WFM)
1st IF: 266.7 MHz
2nd IF: 10.7 MHz
Triple conversion superheterodyne (AM/FM/SSB)
1st IF: 266.7 MHz
2nd IF: 10.7 MHz
3rd IF: 450 KHz
|
| Sensitivity: |
AM (10 dB S/N. 6 KHz BW)
0.5-1.8 MHz: 2.5 uV
1.8-30 MHz: 1.4 uV
30-50 MHz: 1.8 uV
50-700 MHz: 1 uV
700-1300 MHz: 1.3 uV
FM (12 dB SINAD. 15 KHz BW)
28-50 MHz: 0.5 uV
50-700 MHz: 0.32 uV
700-1300 MHz: 0.4 uV
WFM (12 dB SINAD. 230 KHz BW)
50-700 MHz: 0.79 uV
700-1300 MHz: 1 uV
SSB/CW (10 dB S/N. 2.8 KHz)
0.5-1.8 MHz: 0.56 uV
1.8-30 MHz: 0.28 uV
30-50 MHz: 0.35 uV
50-700 MHz: 0.2 uV
700-1300 MHz: 0.25 uV
|
| Selectivity: |
Depending on selected bandwidth
AM/SSB/CW: 2.8 KHz (-6 dB)
AM/FM/SSB/CW: 6 KHz (-6 dB)
AM/FM: 15 KHz (-6 dB)
AM/FM/WFM: 50 KHz (-6 dB)
WFM: 230 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1997-200x (Discontinued) |
| Additional info: |
New price 1998 in the US: $499.95
New price 2001 in Sweden: SEK 5750:-
|
| Related documents: |
User manual (699 KB)
Service manual (18.1 MB)
|
| Modifications and fixes: | |
| Reviews: | Monitoring Times: February 1998 & March 1998 |
| Options / Accessories: |
|
