Icom IC-4E (IC-Mikro 4E)

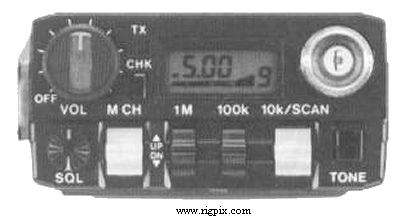

A picture of Icom IC-4E (IC-Mikro 4E) A picture of Icom IC-4E (IC-Mikro 4E)

SPECIFICATIONS

GENERAL
Type:Amateur UHF transceiver
Frequency range:TX: 430-440 MHz (Europe)
RX: 430-440 MHz
Tuning steps:? KHz
Frequency stability:Max ? ppm
Mode:FM
Channels/memory management:
Repeater shift/offset:
Power supply:Max 10.8 VDC
Current drain/power consumption:RX: Max 170 mA
TX: Max 700 mA
Antenna impedance/connector:50 ohm / BNC
Dimensions (W*H*D):58*140*29 mm (2.28*5.51*1.14"), with BP-22
Weight:340 g (11.99 oz), with BP-22
Other features:




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

HighLow
70 cm:1 W100 mW
Modulation system:
FM deviation:? KHz
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / ?-pin
Microphone input sensitivity:? mV




MISCELLANEOUS
Manufactured:Japan, 1987-1989 (Discontinued)
Additional info:
Related documents:User manual (2.6 MB)
Modifications and fixes:
Reviews:
Options/Accessories:
- -
