| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz (Europe)
RX: 0.495-999.99 MHz |
| Tuning steps: | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM and DV (D-Star: GMSK 4.8 kbps voice)
>RX: AM / FM / NFM / WFM and DV (D-Star: GMSK 4.8 kbps voice) |
| Channels / memory management: |
| A-band: | | B-band: |
|---|
| 800 regular | | 400 regular |
| 50 scan edge | | 50 scan edge |
| 2 call | | 2 call |
Alpha tags
Priority watch
Non-volatile storage
|
| Repeater shift / offset: | ±0 to 159.995 MHz in 5 KHz steps |
| Power supply: | 7.4 VDC (Battery pack)
10-16 VDC (External) |
| Current drain / power consumption: | RX: 38-220 mA
TX: 0.4-2.1 A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 59*112*34 mm (2.32*4.41*1.34") |
| Weight: | 325 g (10.58 oz), with BP-256 and antenna |
| Other features: |
CTCSS/PL and DTCS with tone scan. Band scope. 1750 Hz tone burst.
DTMF. Submersible IPX7 (1 meter/30 minutes). Twin RX
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/FM/NFM/DV)
1st IF: 61.65 MHz (A-band), 46.35 MHz (B-band)
2nd IF: 450 KHz
Triple conversion superheterodyne (WFM)
1st IF: 59.25 MHz
2nd IF: 13.35 MHz
3rd IF: 1.95 MHz
|

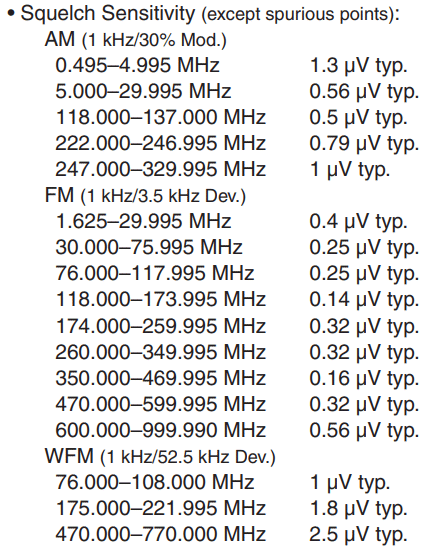

| Sensitivity: |
AM (10 dB S/N)
0.495-5 MHz: 1.3 uV
5-30 MHz: 0.56 uV
118-137 MHz: 0.5 uV
222-247 MHz: 0.79 uV
247-330 MHz: 1 uV
FM (12 dB SINAD)
1.625-30 MHz: 0.4 uV
118-174 MHz: 0.14 uV
174-350 MHz: 0.32 uV
350-470 MHz: 0.16 uV
470-600 MHz: 0.32 uV
600-1000 MHz: 0.45 uV
WFM (12 dB SINAD)
76-108 MHz: 1 uV
175-222 MHz: 1.8 uV
470-770 MHz: 2.5 uV
DV (4.8 kbps, BER 1%)
VHF ham band: 0.22 uV
UHF ham band: 0.22 uV
|
| Selectivity: |
AM/FM
50 dB
NFM/DV
45 dB
WFM
300 KHz (-3 dB)
700 KHz (-20 dB)
|
| Image rejection: | VHF: >60 dB
UHF: >50 dB |
| AF output power/speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid1 | Mid2 | Low |
|---|
| 2 m: | 5 W | 2.5 W | 500 mW | 100 mW |
| 70 cm: | 5 W | 2.5 W | 500 mW | 100 mW |
|
| Modulation system: |
FM: Variable reactance frequency modulation
DV: GMSK reactance frequency modulation
|
| Max FM deviation (Factory set): | FM:±5 KHz
NFM:±2.5 KHz |
| Spurious emissions: | Better than -13 dBm (Low) |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2007-201x (Discontinued) |
| Additional info: | New price 2008 in Sweden: SEK 6495:- |
| Related documents: |
User manual (15.7 MB)
Service manual (8.3 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-92SMA
BC-167D/S
BC-177
BP-256
BP-257
CP-12L
CP-19R
HM-75A
HM-131
HM-153
HM-166
HM-174
HM-175GPS
HS-85
LC-168
MB-111
OPC-254L
OPC-474
OPC-1797
OPC-1799
RS-92
SP-13
|
Antenna connector adapter (SMA-to-BNC)
Wall charger
Rapid charger
7.4 V, 1620 mAh Li-Ion battery pack
2*R6/AA dry cell battery case
Cigarette lighter cable
Cigarette lighter cable with noise filter
Speaker-microphone with remote functions
Speaker-microphone
Hands-free headset
Hands-free headset
Speaker-microphone
Speaker-microphone with GPS receiver
Headset
Carrying case
Belt clip
DC power cable
Cloning cable (Radio-to-radio)
Plug adapter cable
RS232C data cable
Remote control/memory management software
Earphone
|
|
