| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz
RX: 0.495-999.99 MHz |
| Tuning steps: | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to 140°F) |
| Mode: |
TX: FM / NFM and DV (D-Star: GMSK 2.4/4.8 kbps voice)
RX: AM / FM / NFM / WFM and DV (D-Star: GMSK 2.4/4.8 kbps voice)
|
| Channels / memory management: |
1000 regular with alpha tags
50 scan edge
2 call
Priority watch
Non-volatile storage
|
| Repeater shift / offset: | ±0 to 159.995 in 5 KHz steps |
| Power supply: | 7.4 VDC (Battery pack) or 10-16 VDC (External) |
| Current drain / power consumption: | RX: 30-215 mA
TX: 0.4-2.1 A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 58*103*34 mm (2.28*4.06*1.34") |
| Weight: | 290 g (10.23 oz), with antenna and BP-217 |
| Other features: |
CTCSS/PL and DTCS with tone scan. DTMF. 1750 Hz tone burst.
IPX4 splash resistant.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/FM/NFM/DV)
1st IF: 61.65 MHz
2nd IF: 450 KHz
Triple conversion superheterodyne (WFM)
1st IF: 59.25 MHz
2nd IF: 13.35 MHz
3rd IF: 1.95 MHz
|

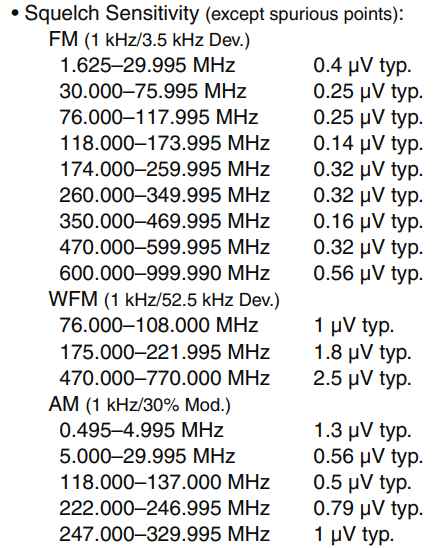

| Sensitivity: |
AM (10 dB S/N)
0.495-5 MHz: 1.3 uV
5-30 MHz: 0.56 uV
118-137 MHz: 0.5 uV
222-247 MHz: 0.79 uV
247-330 MHz: 1 uV
FM (12 dB SINAD)
1.625-30 MHz: 0.4 uV
30-76 MHz: 0.25 uV
76-118 MHz: 0.25 uV
118-174 MHz: 0.14 uV
174-260 MHz: 0.32 uV
260-350 MHz: 0.32 uV
350-470 MHz: 0.16 uV
470-600 MHz: 0.32 uV
600-1000 MHz: 0.56 uV
WFM (12 dB SINAD)
76-108 MHz: 1 uV
175-222 MHz: 1.8 uV
470-770 MHz: 2.5 uV
DV (4.8 kbps, BER 1%)
VHF ham band: 0.22 uV
UHF ham band: 0.22 uV
|
| Selectivity: |
AM/FM
50 dB
NFM/DV
45 dB
WFM
300 KHz (-3 dB)
700 KHz (-20 dB)
|
| Image rejection: |
VHF: >60 dB
UHF: >50 dB
|
| AF output power / speaker: | 300 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid 1 | Mid 2 | Low 1 |
|---|
| 2 m: | 5 W | 2.5 W | 500 mW | 100 mW |
| 70 cm: | 5 W | 2.5 W | 500 mW | 100 mW |
|
| Modulation system: |
FM: Variable reactance frequency modulation
DV: GMSK reactance frequency modulation
|
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -13 dBm (Low) |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2009-20xx |
| Additional info: | |
| Related documents: | User manual (9.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
