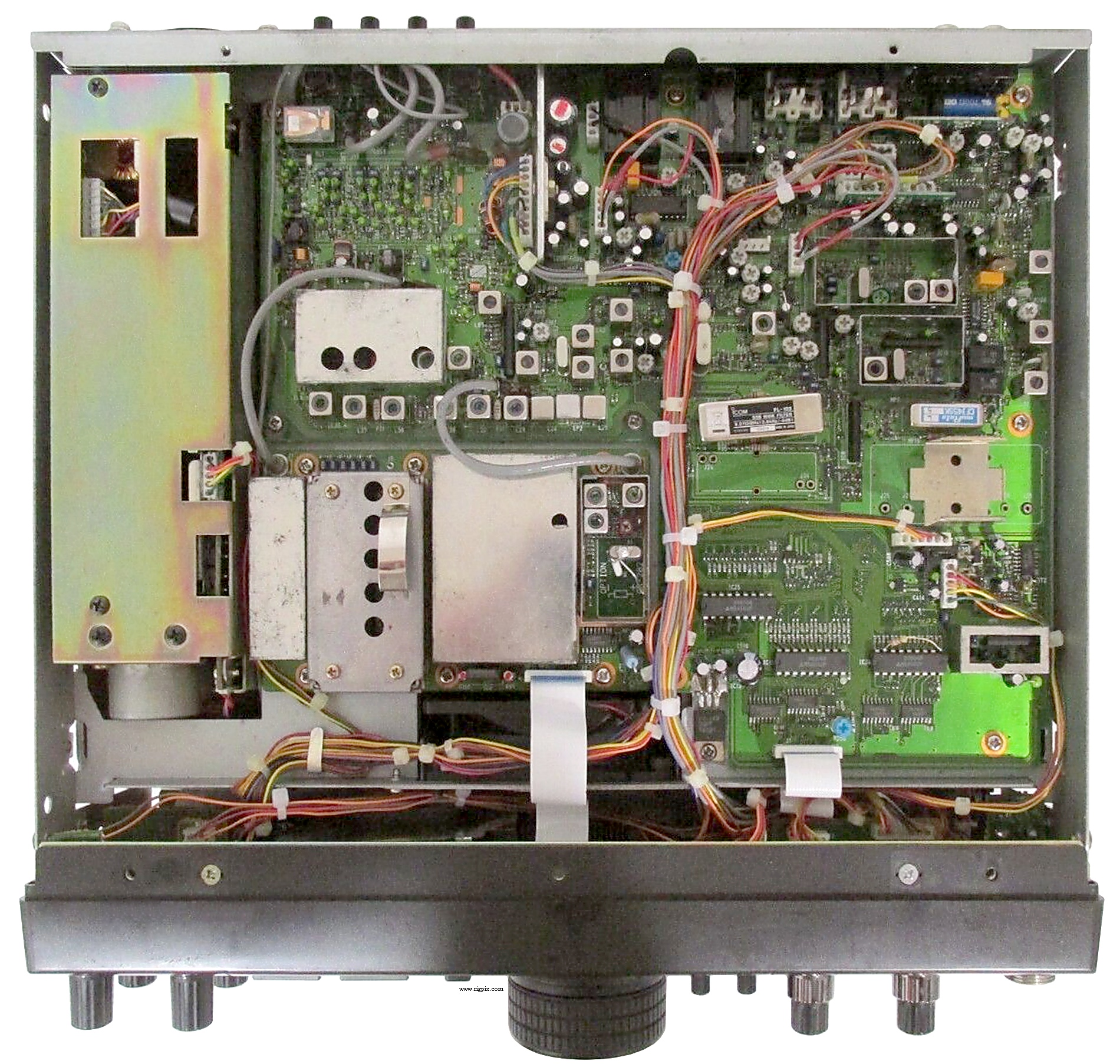

| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.5-30 / 50-54 MHz
|
| Tuning steps: | 1 / 20 / 50 Hz, 1 / 9 / 10 KHz, 1 MHz |
| Frequency stability: | Less than ±30 Hz @ 25°C (77°F), after 1 hr warmup |
| Mode: | AM / FM / SSB / CW |
| Channels / memory management: |
89 regular
10 split
2 scan edge
RAM storage with lithium battery backup
|
| Repeater shift / offset: | No dedicated. Use split memories |
| Power supply: | Mains: 100-120 or 220-240 VAC (3-pin IEC C14 jack) |
| Current drain / power consumption: | RX: 75 to 80 VA
TX: Max 500 VA |
| Antenna impedance / connector: | 50 ohm (16.7-150 ohm with ATU on) / Two SO-239 |
| Dimensions (W*H*D): | 330*111*285 mm (13*4.37*11.22") |
| Weight: | 10.48 Kg (23.1 lb) |
| Other features: |
Auto-ATU. Electronic keyer. VOX. SWR-meter. PBT. CI-V computer control.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 69.01 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
|
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1.6 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.3 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.15 uV
50-54 MHz: 0.13 uV
|
| Squelch sensitivity: | FM (Preamp on): Less than 0.3 uV (Treshold)
SSB (Preamp on): Less than 5.6 uV (Treshold) |
| Noise figure: | |
| Selectivity: |
AM
6 KHz (-6 dB)
20 KHz (-40 dB)
FM
12 KHz (-6 dB)
30 KHz (-50 dB)
SSB/CW
2.1 KHz (-6 dB)
4 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2.6 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | 4-40 W |
| FM: | 5-100 W |
| SSB (PEP): | 5-100 W |
| CW: | 5-100 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | HF: Better than -50 dB
6 m: Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1994-1996 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (7.4 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-2b
AH-3
AT-150
AT-500
CR-282
CT-16
CT-17
EX-627
FL-52A
FL-53A
FL-100
FL-101
HM-36
IC-2KL
IC-4KL
MB-49
SM-6
SM-8
SM-20
SP-3
SP-7
SP-20
SP-21
UT-30
|
Mobile HF antenna element
Automatic antenna tuner
Automatic antenna tuner
Automatic antenna tuner
High-stability crystal unit (±0.5 ppm)
Satellite interface unit
CI-V level converter
Automatic antenna selector
500 Hz narrow CW/RTTY filter (IF: 455 KHz)
250 Hz super-narrow CW filter (IF: 455 KHz)
500 Hz narrow CW/RTTY filter (IF: 9 MHz)
250 Hz super-narrow CW filter (IF: 9 MHz)
Standard hand microphone
HF linear amplifier. 500 W
HF linear amplifier. 1 KW
Mobile mounting bracket
Desk microphone
Desk microphone with dual line output
Desk microphone
External speaker. 4 W, 8 ohm
External speaker. 5 W, 8 ohm
External speaker with filters. 5 W, 8 ohm
External speaker. 5 W, 8 ohm
Programmable tone encoder unit
|
|
