Icom AT-150

A picture of Icom AT-150

SPECIFICATIONS

GENERAL
Type:Automatic antenna tuner
Frequency range:10-160 m + WARC
Max feed through RF power:100 W (200 W PEP)
Impedance range / connectors:?-? ohm / Four SO-239
Power supply:13.8 VDC
Current drain / power consumption:Max 500 mA
Dimensions (W*H*D):180*94*239 mm (7.09*3.7*9.41")
Weight:3.1 Kg (6.83 lb)
Manufactured:Japan, 1987-199x (Discontinued)
Additional info: New price 1989 in the US: $369.95
Related documents:
Modifications and fixes:
Reviews:
Applicable radios:

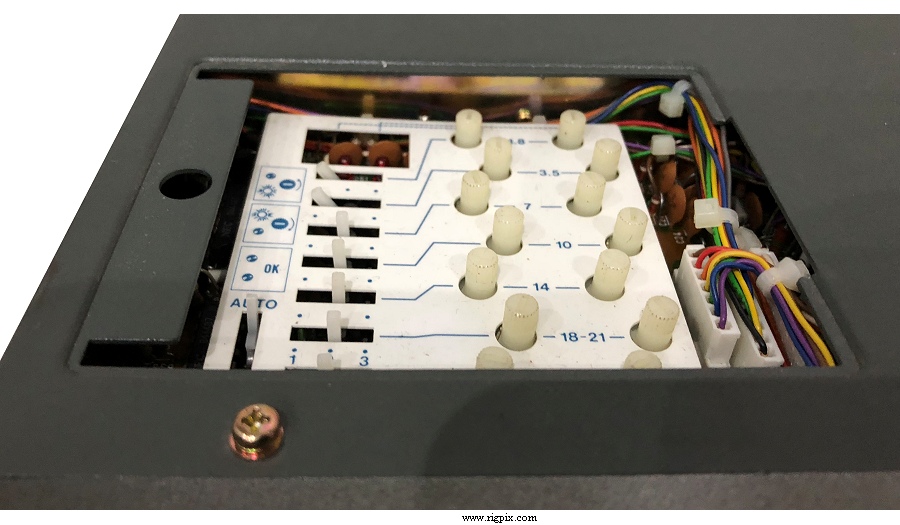

A picture of Icom AT-150 settings panel
A rear picture of Icom AT-150
