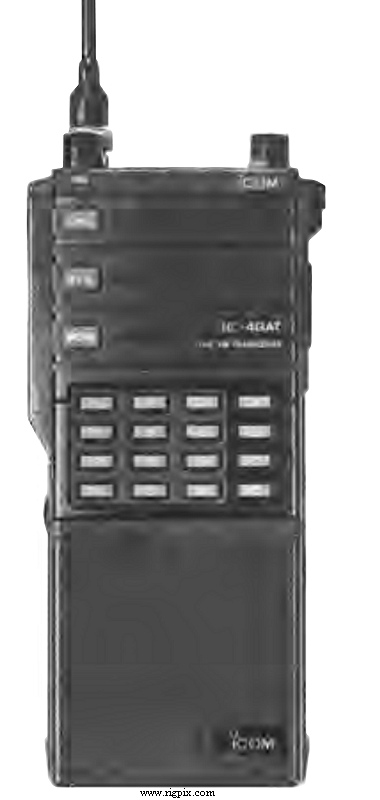

| GENERAL |
| Type: | Amateur UHF transceiver |
| Frequency range: |
USA
TX: 440-450 MHz
RX: 440-450 MHz
|
| Tuning steps: | 5 / 10 / 15 / 20 / 25 KHz |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: |
20 regular
1 call
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.2-13.2 VDC (Depending on battery pack)
or 5.5-16 VDC external |
| Current drain / power consumption: | RX: 12-250 mA
TX: Max 2.3 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 65*130*35 mm (2.56*5.12*1.38"), with BP-3 |
| Weight: | 430 g (15.17 oz), with BP-3 |
| Other features: | DTMF keypad. CTCSS/PL option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 23.15 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.1 uV (Threshold) |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1988-198x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (2.1 MB)
Service manual (2.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-12
BC-16
BC-35
BP-2
BP-3
BP-5
BP-5A
BP-7
BP-8
BP-70
CP-10
HM-46L
HS-10
HS-10A
HS-10B
LC-38
LC-39
LC-40
UT-40
|
Power adapter
Wall charger
Desk charger
NiCd battery pack. 7.2 VDC, 450 mAh
NiCd battery pack. 8.4 VDC, 270 mAh
NiCd battery pack. 10.8 VDC, 450 mAh
NiCd battery pack. 10.8 VDC, 450 mAh
NiCd battery pack. 13.2 VDC, 450 mAh
NiCd battery pack. 8.4 VDC, 800 mAh
NiCd battery pack. 13.2 VDC, 270 mAh
Battery separation cable
Speaker-microphone
Headset (Requires HS-10A and B)
VOX unit for HS-10
PTT switchbox for HS-10
Carrying case, for use with BP-2, BP-3 and BP-4
Carrying case, for use with BP-5, and BP-70
Carrying case, for use with BP-5A, BP-7 and BP-8
Tone squelch unit
|
|
