| GENERAL |

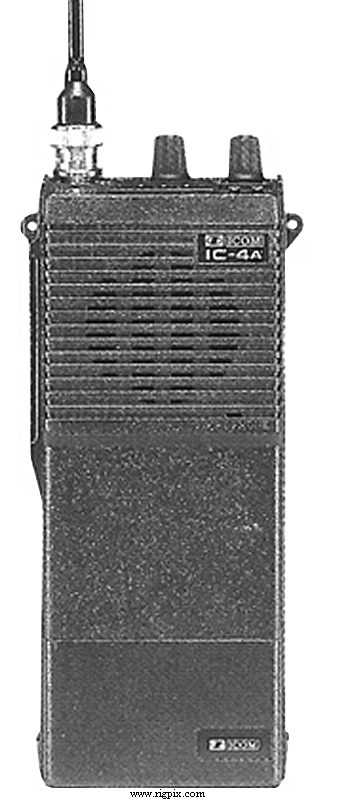

| Type: | Amateur UHF transceiver |
| Frequency range: |
USA
TX: 440-450 MHz
RX: 440-450 MHz
|
| Tuning steps: | 5 / 10 / 100 KHz
1 MHz |
| Frequency stability: | ±2.5 KHz @ -10° to +60°C (14° to 140°F) |
| Mode: | FM |
| Channels / memory management: | No |
| Repeater shift / offset: | ±5 MHz |
| Power supply: | 7.2-10.8 VDC (Depending on battery pack) |
| Current drain / power consumption: | RX: 22-170 mA
TX: 700 mA @ 1.5 W |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 65*165*35 mm (2.56*6.5*1.38"), with BP-3 |
| Weight: | 470 g (1.04 lb), with BP-3 and supplied antenna |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.8 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB noise quieting) |
| Squelch sensitivity: | Less than 0.4 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@10.8V | High
@8.4V | Low |
|---|
| 70 cm: | 2.3 W | 1.5 W | 150 mW |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / TS "Subminijack" (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1981-1990 (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (1.6 MB)
FM-IF: MC3357
|
| Modifications: | |
| Reviews: | |
| Options / Accessories: |
BC-16E
BC-16U
BC-17
BC-18
BC-25E
BC-25U
BC-26E
BC-27
BC-35
BC-36
BP-2
BP-3
BP-4
BP-5
BP-5A
BP-8
CP-1
CP-10
CP-11
DC-1
HM-9
HM-46
HM-54
HS-10
HS-10SA
HS-10SB
HS-51
MB-16
MB-16D
OPC-207
|
Wall charger
Wall charger
Wall charger
Wall charger
Wall charger
Wall charger
Wall charger
Wall charger
Desktop rapid charger
Desktop rapid charger
NiCd battery pack. 7.2 V, 450 mAh
NiCd battery pack. 8.4 V, 270 mAh
Battery case. Six R6 / AA alkaline or NiCd cells
NiCd battery pack. 10.8 V, 450 mAh
NiCd battery pack. 10.8 V, 450 mAh
NiCd battery pack. 8.4 V, 800 mAh
Cigarette lighter cable
Battery separation cable
Cigarett lighter cable with noise filter
DC-DC converter. 12-14 VDC input. 9 VDC output
Speaker-microphone. Round type
Speaker-microphone. Slim type
Speaker-microphone. Heavy duty type
Headset
VOX unit for HS-10
PTT switch box for HS-10
Headset
Mobile bracket
Wall bracket
DC power cable
|
|
