| GENERAL |

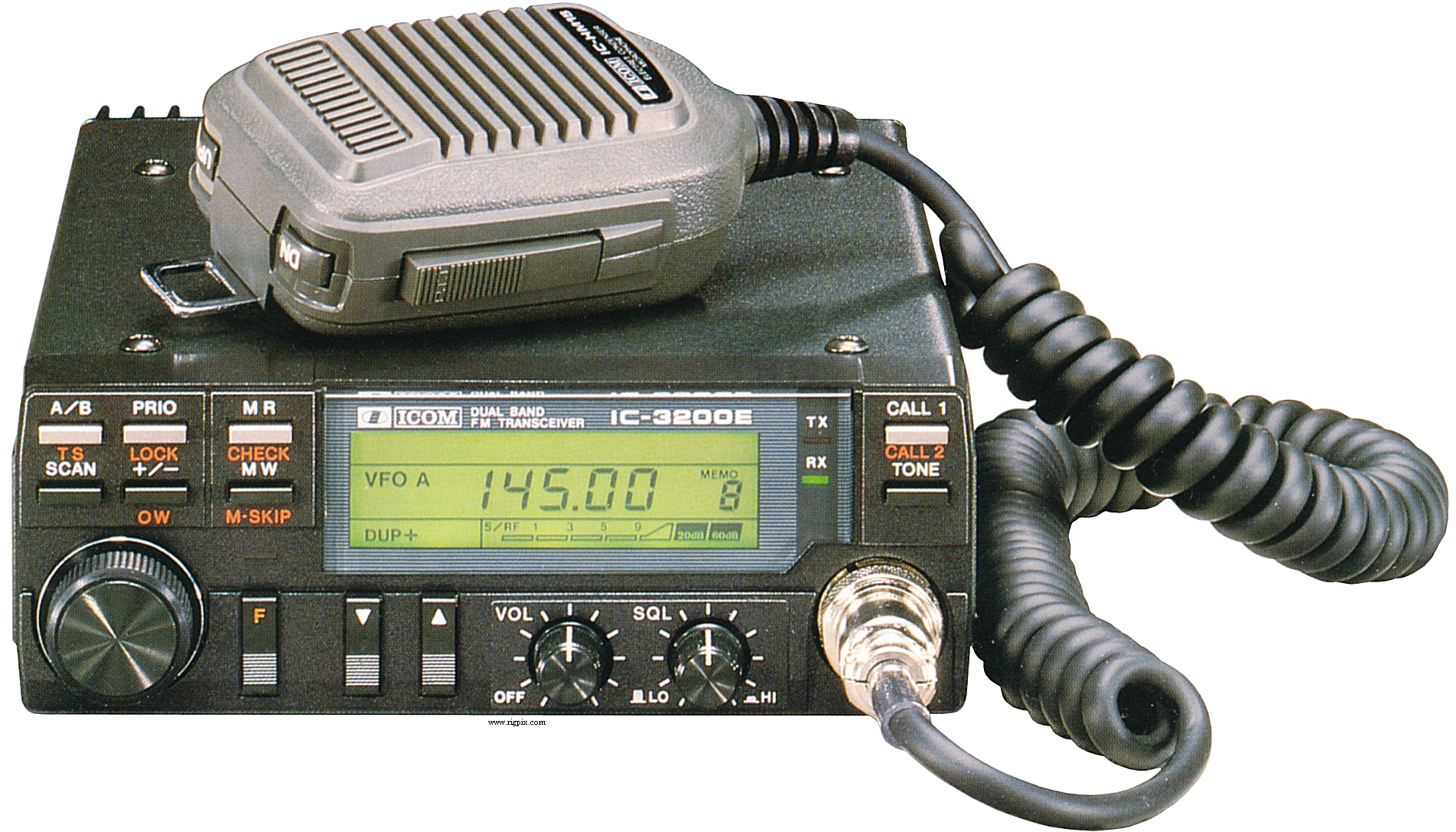

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
|
| Tuning steps: | 12.5 / 25 KHz |
| Frequency stability: | ±0.001% @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: |
10 regular
2 call
Priority watch
RAM storage with lithium battery backup
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 500 to 650 mA
TX: 3.5 to 7.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D): | 140*50*207 mm (5.51*1.97*8.15") |
| Weight: | 1.9 Kg (4.19 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.875 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 1.7 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 25 W | 5 W |
| 70 cm: | 25 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1985-198x (Discontinued) |
| Additional info: | New price 1985 in Sweden: SEK 4995:- |
| Related documents: |
User manual (3.5 MB)
Service manual (3.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HM-12
HM-14
HM-15
HS-15
HS-15SB
OPC-102
PS-45
SM-8
SP-3
SP-4
SP-10
UT-23
|
Hand microphone with up/down buttons
Hand microphone with up/down buttons and DTMF pad
Hand microphone with up/down buttons and 1750 Hz tone call
Flexible mobile microphone
PTT switch box
DC power cable. Max 10 A (for connecting to PS-45)
AC power supply. 13.8 VDC, 8 A
Electret desk microphone
External speaker
External speaker
External speaker
Voice synthesizer unit
|
|
