| GENERAL |

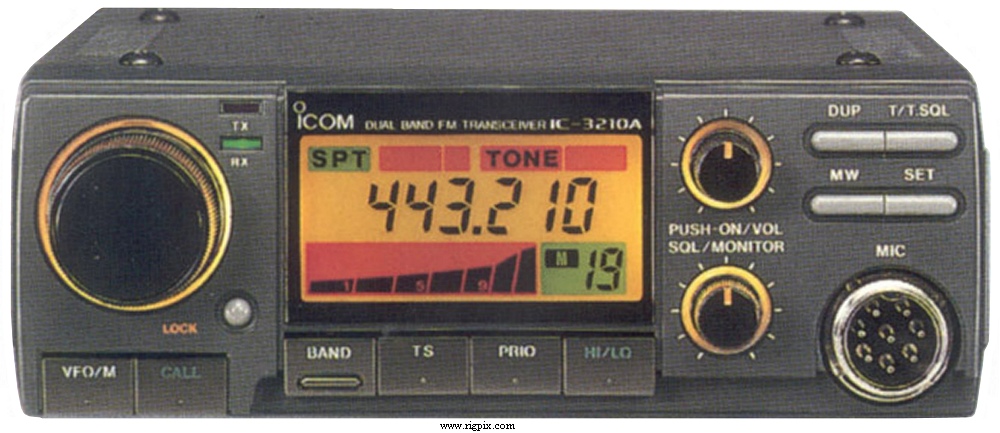

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 440-450 MHz
RX: 138-174 / 400-470 MHz
Australia
TX: 144-148 / 430-440 MHz
RX: 138-174 / 400-470 MHz
(The wide RX frequency range may require modification)
|
| Tuning steps: | 5 / 10 / 15 / 20 / 25 KHz |
| Frequency stability: | ±10 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: |
20 regular (Double-spaced)
2 call
2 scan edge
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±0-10 MHz in selected increment |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 550 to 900 mA
TX: 3.6 to 7.6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D): | 140*50*180 mm (5.5*2*7.1") |
| Weight: | 1.2 Kg (2.6 lb) |
| Other features: | CTCSS/PL encoder. Crossband repeat. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.875 MHz - Crystal filter: 30M15B
2nd IF: 455 KHz - Ceramic filter: CFW455E
|
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | 12.5 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 25 W | 5 W |
| 70 cm: | 25 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1988-1990 (Discontinued) |
| Additional info: | New price 1989 in the US: $649.95 |
| Related documents: |
User manual (3 MB)
Service manual (16 Mb)
PLL: PLL2001S
FM-IF: TK10420
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-32
AHB-32
HM-12
HM-14
HM-15
HS-15
HS-15SB
PS-45
SM-8
SM-10
SP-7
SP-8
SP-10
UT-40
|
2 m/70 cm dual band mobile antenna
Trunk mount for AH-32
Standard hand microphone
Hand microphone with DTMF keypad
Hand microphone with 1750 Hz tone call
Flexible mobile microphone
Switchbox for HS-15
Power supply, 13.8 VDC, 8 A
Desk microphone
Desk microphone with equalizer
External speaker
External speaker
External speaker
CTCSS/PL tone squelch unit (Decoder)
|
|
