| GENERAL |

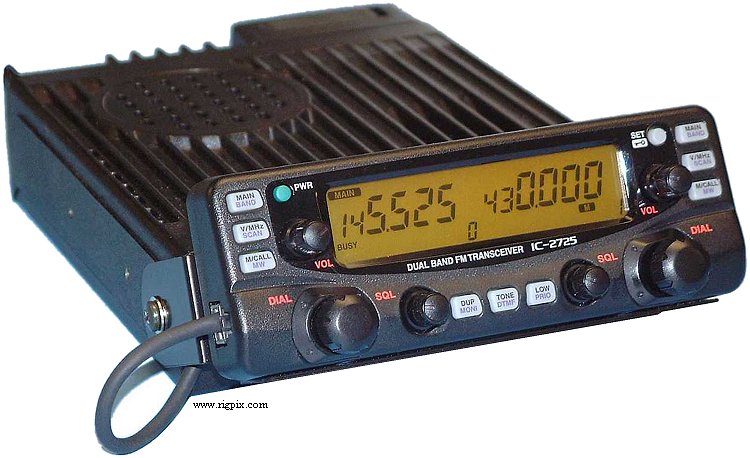

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 118-899.9875 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±10 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / AM |
| Channels / memory management: |
200 regular
5 scan edge pairs
2 call
Non-volatile EEPROM storage
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 1.2 to 1.8 A
TX: Max 12 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Main unit: 140*40*187 mm (5.51*1.58*7.36")
Panel: 140*50*25 mm (5.51*1.97*0.98") |
| Weight: | Main unit: 1.25 Kg (2.76 lb)
Panel: 150 g (5.29 oz) |
| Other features: |
CTCSS/PL and DTCS.1200/9600 bd packet jack.
Twin RX (V+U, V+V, U+U)
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 38.85 MHz (Left band), 46.05 MHz (Right band)
2nd IF: 450 KHz (Left band), 455 KHz (Right band)
|
| Sensitivity: | 2 m/70 cm: 0.18 uV (12 dB SINAD) |
| Selectivity: |
FM
12 KHz (-6 dB)
30 KHz (-60 dB)
NFM
6 KHz (-6 dB)
20 KHz (-60 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 15 W | 5 W |
| 70 cm: | 35 W | 15 W | 5 W |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2002-200x (Discontinued) |
| Additional info: | New price 2008 in Sweden: SEK 5495:- |
| Related documents: |
User manual (2.6 MB)
Service manual (3.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CS-2720
HM-118TAN
HM-118TN
HM-133
HS-15SB
HS-62
MB-17A
MB-65
MB-84
MB-85
OPC-347
OPC-440
OPC-441
OPC-474
OPC-478U
OPC-647
OPC-1132
OPC-1154
OPC-1155
OPC-1156
SP-7
SP-10
|
Cloning software
Hand microphone with DTMF keypad
Hand microphone with DTMF keypad
Hand microphone with remote control
Switchbox
Flexible mobile microphone
Mobile mounting bracket. One touch type
Mounting base
Remote controller bracket
Combination bracket
DC power cable. 7 m (23 ft)
Mic extension cable. 5 m (16.4 ft)
Speaker extension cable. 5 m (16.4 ft)
Cloning cable (Radio-to-radio)
Cloning cable, USB (Radio-to-PC)
Mic extension cable. 2.5 m (8.2 ft)
DC power cable. 3 m (9.8 ft)
Separation cable. 3.5 m (11.5 ft)
Separation cable with ferrite core. 3.5 m (11.5 ft)
Controller extension cable. 3.5 m (11.5 ft)
External speaker
External speaker
|
|
