| GENERAL |

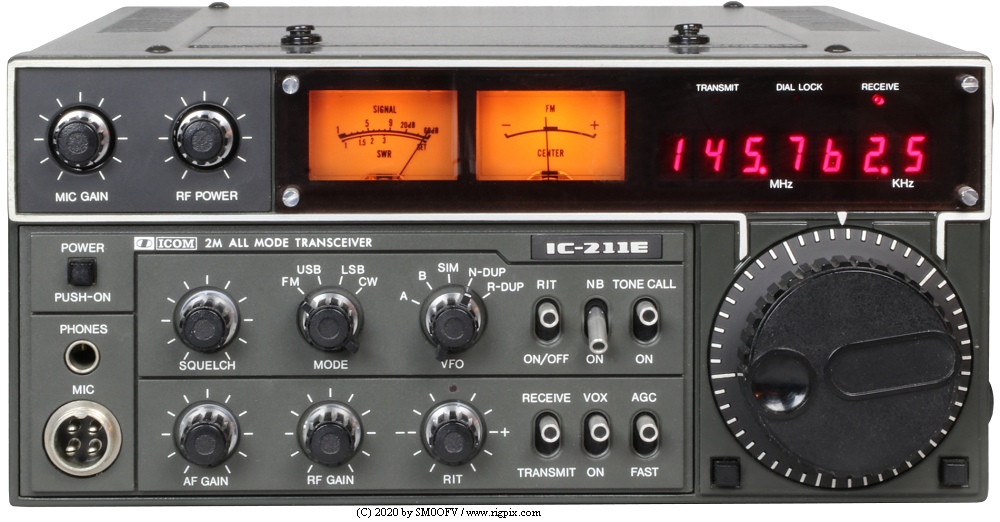

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 144-146 MHz
|
| Tuning steps: | 100 Hz / 5 KHz |
| Frequency stability: | Less than ±1.5 KHz @ -10° to +60°C (14° to 140°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: | None |
| Repeater shift / offset: | No dedicated. This radio splits between VFO A/B instead |
| Power supply: | Mains: 200-240 VAC (3-pin IEC C14 connector)
or 13.8 VDC |
| Current drain / power consumption: | RX: 0.9 to 1.1 A
TX: 1.8 to 3.3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 241*111*264 (9.5*4.4*10.4") |
| Weight: | 6.1 Kg (13.5 lb) |
| Other features: | NB, VOX, dimmer, SWR-meter. 1750 Hz tone call. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
IF: 10.7 MHz
Double conversion superheterodyne (FM)
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
FM: 0.6 uV (20 dB noise quieting)
SSB/CW: <0.5 uV (10 dB S+N/N)
|
| Selectivity: |
FM
15 KHz (-6 dB)
30 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)
|
| Image rejection: | >60 dB |
| AF output power / speaker: | 1.5 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| FM: | 1-10 W |
| SSB (PEP): | 10 W |
| CW: | 10 W |
|
| Modulation system: | FM: Variable reactance
SSB: Balanced |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | 10 mV (Typical) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1978 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (9.4 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
IC-EX1
IC-EX2
IC-HM5
IC-HP1
IC-RM3
IC-SM2
|
Extension terminal
Extension terminal with 25 KHz marker
Noise cancelling hand microphone
Headphones
Computerized remote controller
Electret desk microphone
|
|
