| GENERAL |

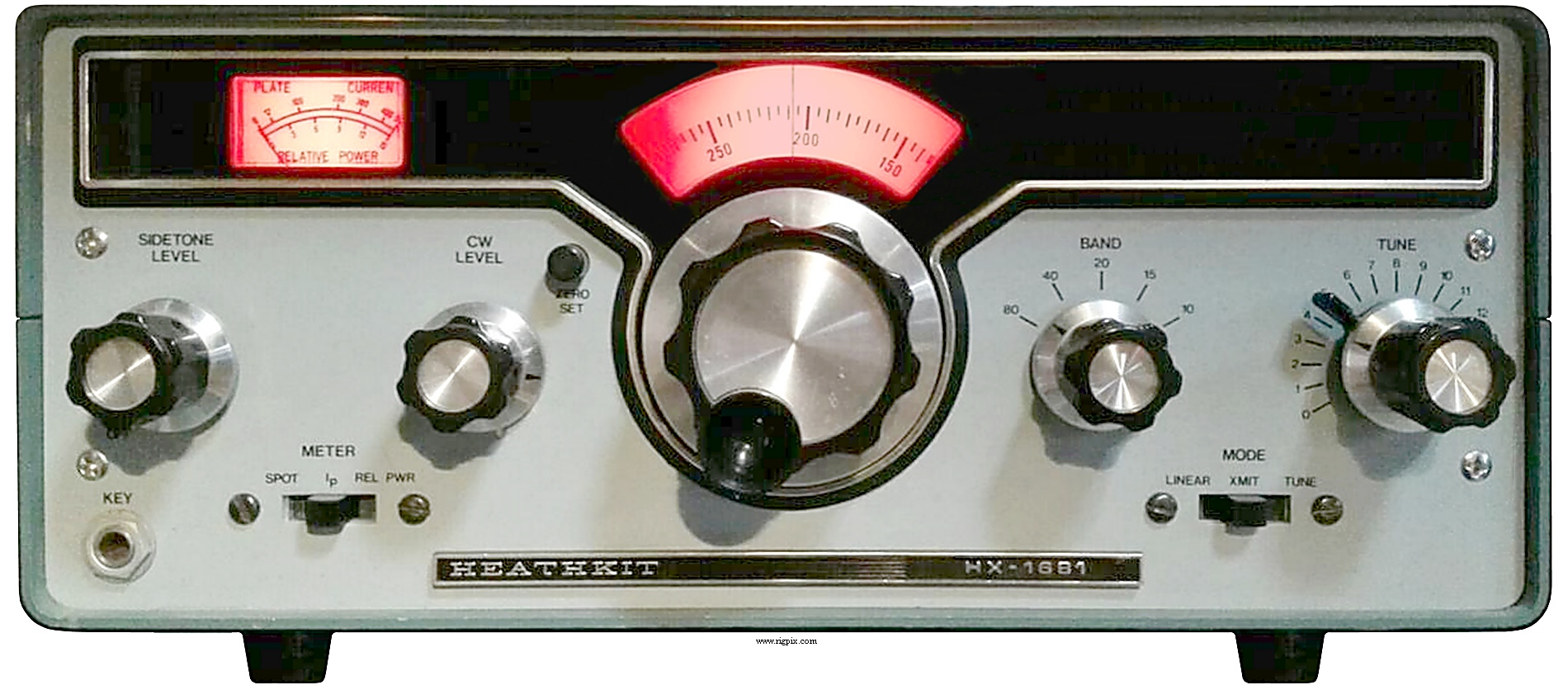

| Type: | Amateur HF transmitter |
| Frequency range: |
10-80 m in five bands
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ? ppm |
| Mode: | CW |
| Channels / memory management: | None |
| Power supply: | External PSU |
| Current drain / power consumption: | 250 mA @800 VDC
50 mA @ 250 VDC
10 mA @ -115 VDC
2.5 A @ 12.6 VAC/DC |
| Antenna impedance / connector: | 50-75 ohm / ? |
| Dimensions (W*H*D): | 324*171*305 mm (12.76*6.73*12.01") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
100 W (75 W on 10 m)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | - |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1979-1982 (Discontinued) |
| Additional info: |
New price, christmas 1979 in the US: $239.95 (Kit)
New price, christmas 1981 in the US: $199.95 (Kit)
|
| Related documents: |
RF finals: Two 6146A
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
