Hallicrafters SX-71 / SX-71U

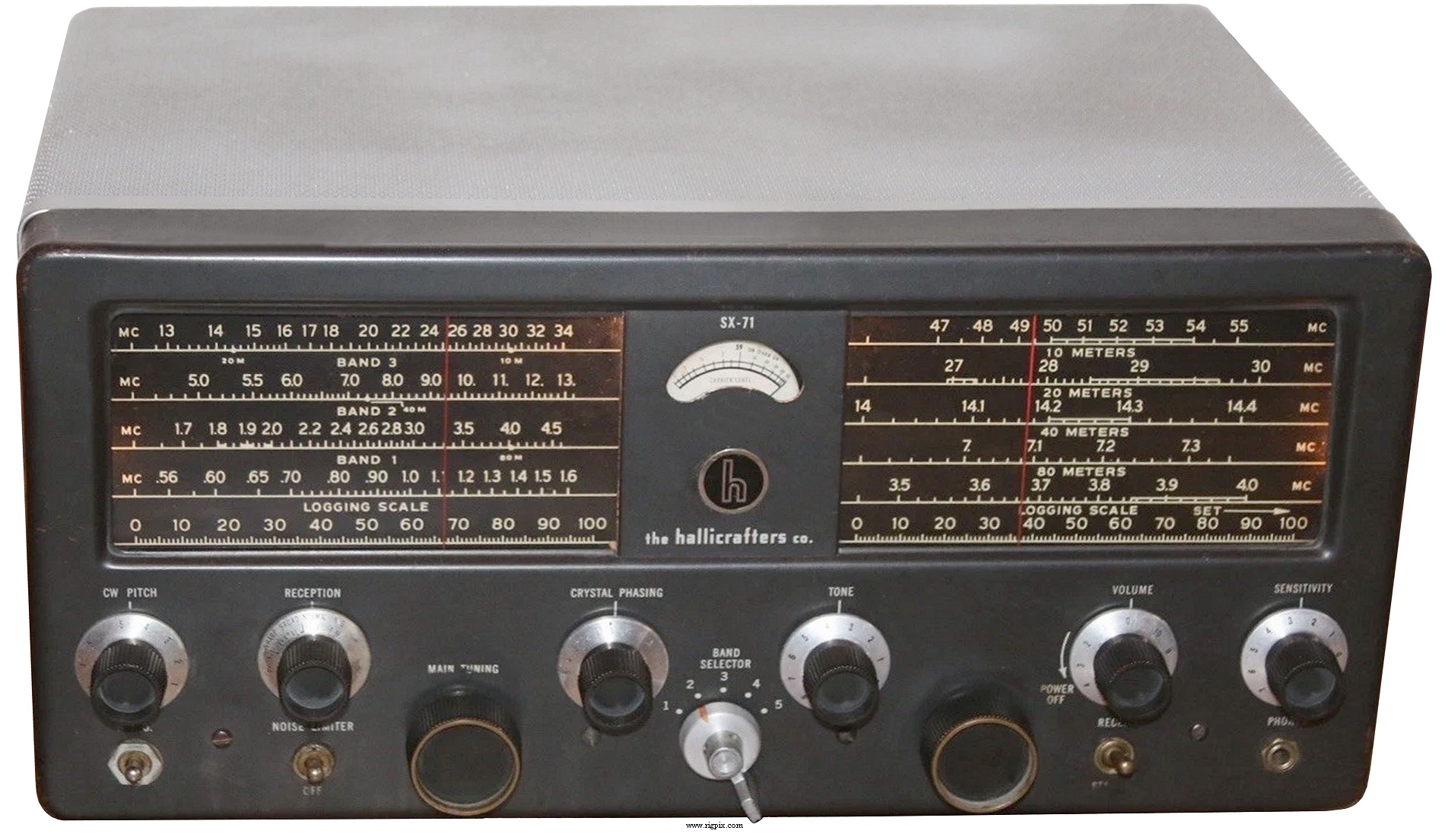

A picture of Hallicrafters SX-71 / SX-71U

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.56-34 / 46-56 MHz in five bands
1:   0.56-1.6 MHz
2:   1.65-4.7 MHz
3:   4.7-13.4 MHz
4:   12.8-34 MHz
5:   46-56 MHz
With bandspread on the ham bands
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / CW / NFM
Channels / memory management: None
Power supply: Mains: 105-125 VAC (SX-71)
Mains: 105-250 VAC (SX-71U)
or 6 and 270 VDC
Current drain / power consumption:90 W
Antenna impedance / connector:50-600 ohm or Hi-Z / Screw terminals
Dimensions (W*H*D):330*130*280 mm (13*5.12*11")
Weight:15 Kg (33.07 lb)
Other features: Noise limiter. Variable crystal filter. Phono input jack.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 2.075 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / No internal speaker
External speaker connector:Screw terminals, 3.2 or 500 ohm




MISCELLANEOUS
Manufactured:USA, 1949-1954 (Discontinued)
Additional info: New price 1950 in the US: $179.50
Related documents:User manual (5.1 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
R-46 Speaker
