| GENERAL |

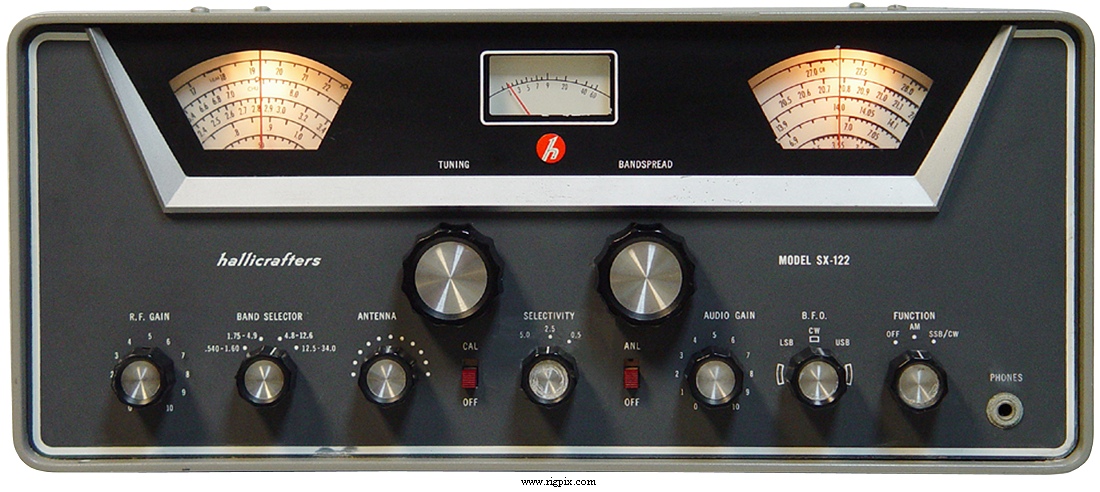

| Type: | HF/VHF receiver |
| Frequency range: |
0.54-34 MHz in four bands
0.54-1.6 MHz
1.75-4.9 MHz
4.8-12.6 MHz
12.5-34 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ? ppm |
| Mode: | AM / SSB / CW |
| Channels / memory management: |
None
|
| Power supply: | Mains: 105-125 VAC |
| Current drain / power consumption: | Max 85 W |
| Antenna impedance / connector: | 50-600 ohm / Screw terminals |
| Dimensions (W*H*D): | 476*203*248 mm (18.74*7.99*9.76") |
| Weight: | 13.2 Kg (29.1 lb) |
| Other features: | ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 1.65 MHz
2nd IF: 50 KHz
|
| Sensitivity: | |
| Selectivity: |
5 KHz (-6 dB)
2.5 KHz (-6 dB)
500 Hz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 3.2 W at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1964-1971 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HA-7
R-48A
|
Crystal calibrator, 100 KHz
External speaker
|
|
