Grundig Satellit 650

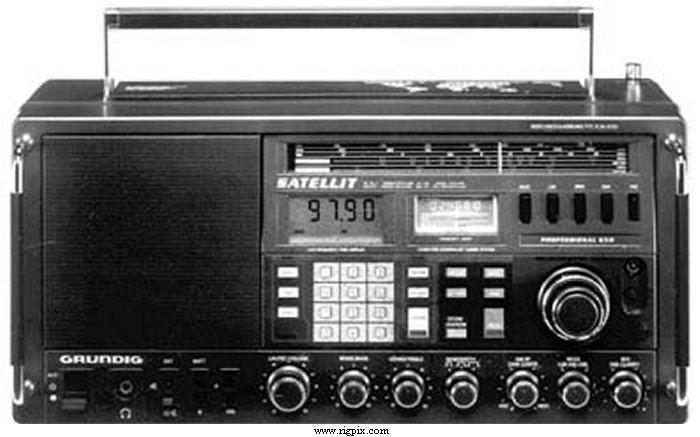

A picture of Grundig Satellit 650

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.14-30 / 88-108 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / SSB / WFM
Channels / memory management: 60 regular
Power supply:9 VDC (Six LR20 / D batteries)
or 12 VDC external
or mains
Current drain / power consumption:? mA @ 9 VDC
Antenna impedance / connector:50-75 ohm / ?
- / Built-in telescopic whip
Dimensions (W*H*D):500*240*200 mm (19.69*9.45*7.87")
Weight:8.5 Kg (18.74 lb)
Other features:Preselector. ANL. Clock.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Portugal, 1986-1991 (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
